Collected Points

[1] “Theoretical maximum:” [1] 36000 [1] “Empirical maximum:” [1] 25628 [1] “Empirical maximum corrected:” [1] 25628

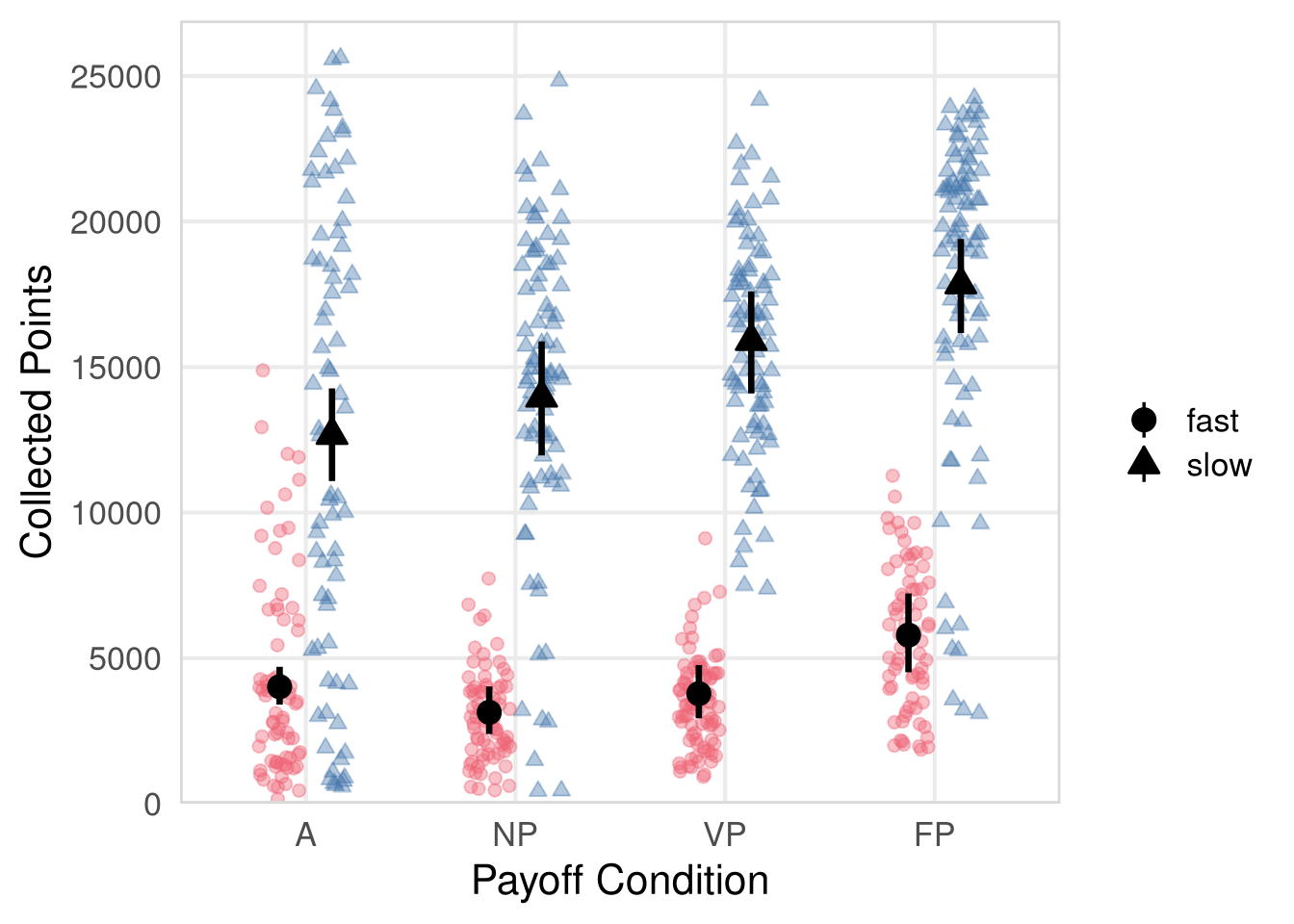

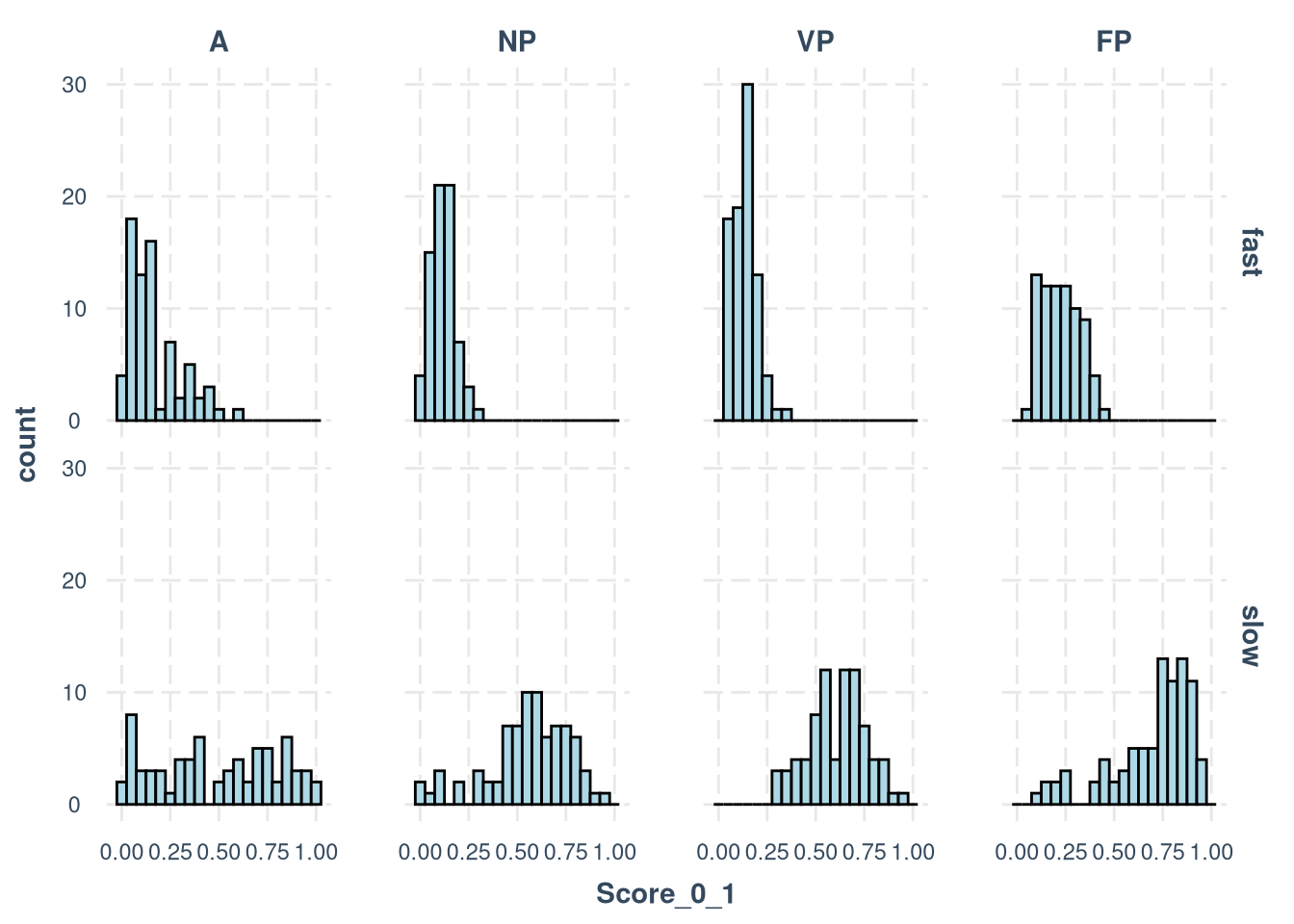

Score distribution by condition

Model 1

m.CollectedPoints.1.formula <- brmsformula(
  Score_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup + (1 | Group),
  family = Beta(link = "logit", link_phi = "log")
  )

m.CollectedPoints.1.formula_comparison <- brmsformula(
  Score_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup
  )

m.CollectedPoints.1.priors <-
    prior(normal(0, 0.5), class = b) +
    prior(normal(0, 1), class = Intercept) +
    prior(normal(2, 1), class = phi, lb = 0) +
    prior(normal(0, 1), class = sd, lb = 0)

Prior predictive checks

m.CollectedPoints.1.fit_prior <- brm(
  formula = m.CollectedPoints.1.formula,
  data    = m.CollectedPoints.data,
  prior   = m.CollectedPoints.1.priors,
  chains  = 4,
  cores   = 4,
  seed    = 42,
  iter    = 2000,
  file = paste0(fits_path, 'collected_points_1_prior.rds'),
  sample_prior = "only",
  backend = "cmdstanr",
  threads = threading(100),
  control = list(adapt_delta = 0.95),
  save_pars = save_pars(all = TRUE))

m.CollectedPoints.1.y <- m.CollectedPoints.data$Score_0_1

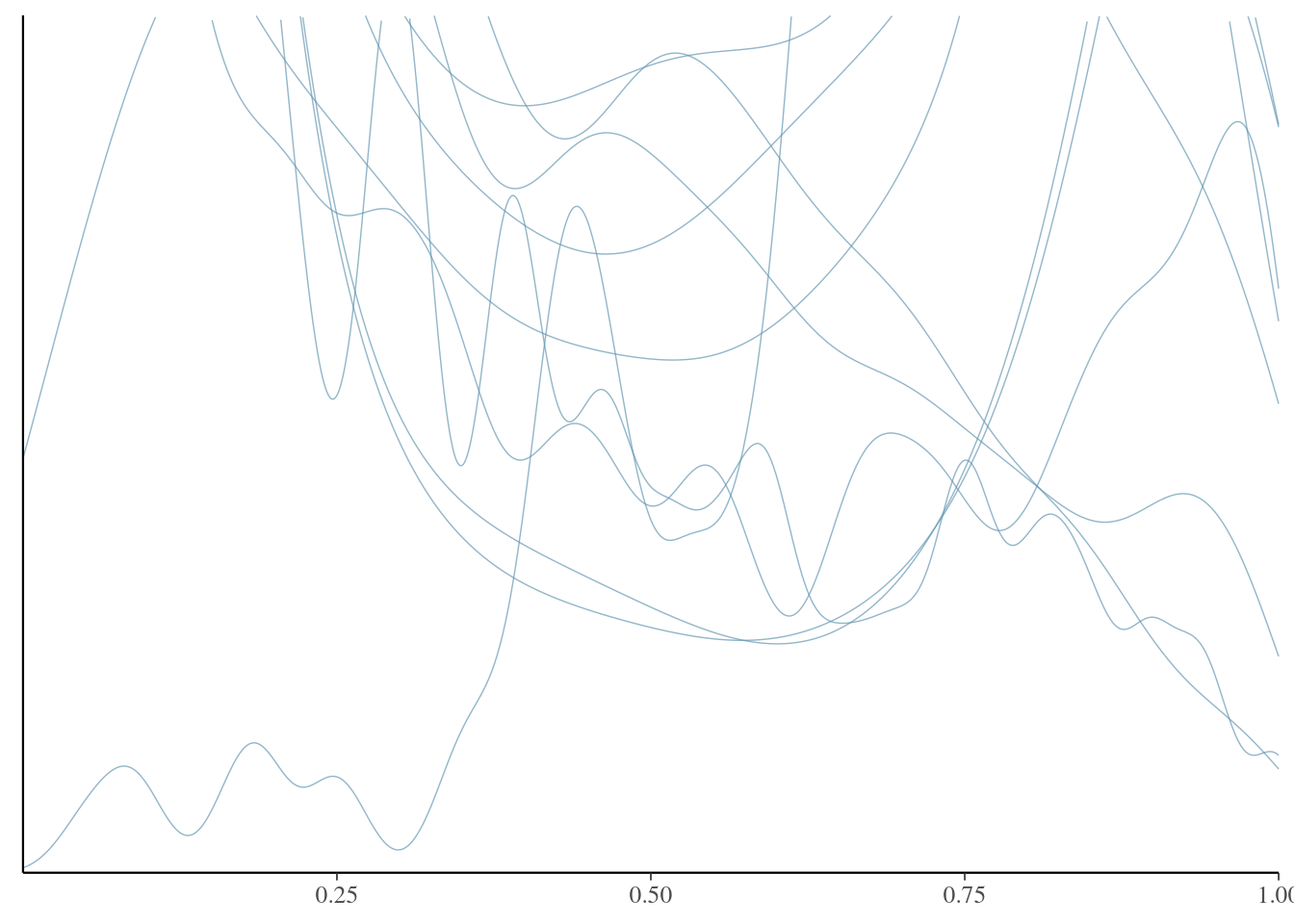

pp_check(m.CollectedPoints.1.fit_prior, prefix = "ppd", ndraw = 20) +
  ylim(0, 0.5)

summary(m.CollectedPoints.1.fit_prior)

##  Family: beta
##   Links: mu = logit; phi = identity
## Formula: Score_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup + (1 | Group)
##    Data: m.CollectedPoints.data (Number of observations: 621)
##   Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
##          total post-warmup draws = 4000
##
## Multilevel Hyperparameters:
## ~Group (Number of levels: 247)
##               Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## sd(Intercept)     0.80      0.60     0.04     2.21 1.00     3506     1605
##
## Regression Coefficients:
##                                   Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## Intercept                            -0.02      1.12    -2.24     2.17 1.00     5550     2969
## ResourceSpeedslow                     0.01      0.49    -0.96     0.99 1.00     5197     3111
## SignalingTypeNP                      -0.01      0.50    -0.98     0.94 1.00     4846     2788
## SignalingTypeVP                       0.00      0.50    -0.99     0.96 1.00     5443     2929
## SignalingTypeFP                      -0.01      0.49    -0.98     0.93 1.00     4785     2505
## IsInFullGroup                         0.01      0.50    -0.95     0.99 1.00     4500     2755
## ResourceSpeedslow:SignalingTypeNP     0.01      0.49    -0.95     0.96 1.00     5243     3075
## ResourceSpeedslow:SignalingTypeVP    -0.01      0.49    -0.97     0.93 1.00     4948     2982
## ResourceSpeedslow:SignalingTypeFP    -0.00      0.50    -0.97     0.96 1.00     4573     2577
##
## Further Distributional Parameters:
##     Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## phi     2.08      0.91     0.38     3.89 1.00     2763     1245
##
## Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
## and Tail_ESS are effective sample size measures, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).

Model fitting

m.CollectedPoints.1.fit <- brm(
  formula = m.CollectedPoints.1.formula,
  data    = m.CollectedPoints.data,
  prior   = m.CollectedPoints.1.priors,
  chains  = 7,
  cores   = 7,
  seed    = 42,
  iter    = 20000,
  file = paste0(fits_path, 'collected_points_1.rds'),
  backend = "cmdstanr",
  threads = threading(100),
  control = list(adapt_delta = 0.95),
  save_pars = save_pars(all = TRUE)
  )

##  Family: beta
##   Links: mu = logit; phi = identity
## Formula: Score_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup + (1 | Group)
##    Data: m.CollectedPoints.data (Number of observations: 621)
##   Draws: 7 chains, each with iter = 20000; warmup = 10000; thin = 1;
##          total post-warmup draws = 70000
##
## Multilevel Hyperparameters:
## ~Group (Number of levels: 247)
##               Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## sd(Intercept)     0.81      0.06     0.70     0.93 1.00    20145    36668
##

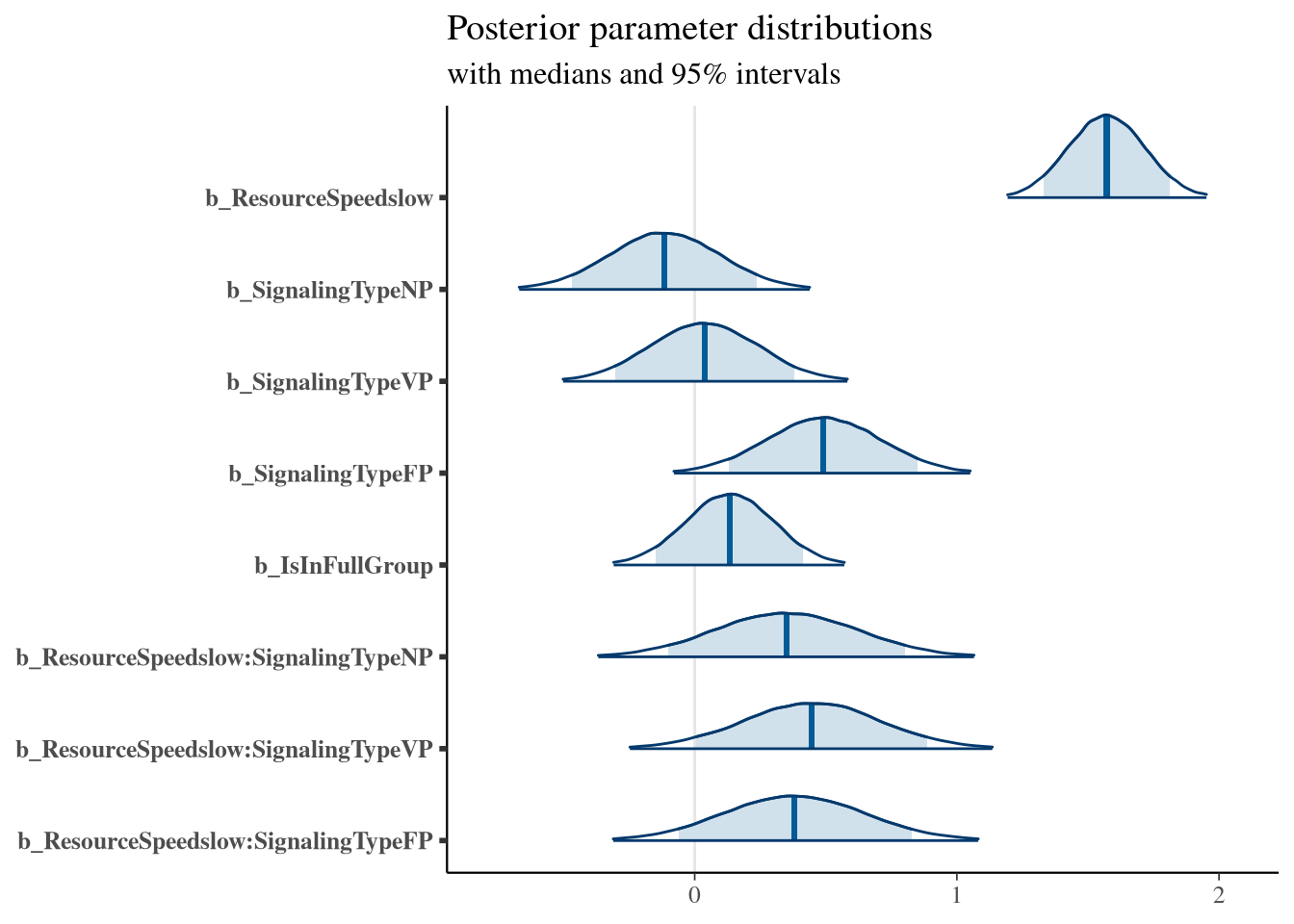

## Regression Coefficients:
##                                   Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## Intercept                            -1.76      0.20    -2.14    -1.37 1.00    18769    33787
## ResourceSpeedslow                     1.57      0.15     1.29     1.86 1.00    28686    42990
## SignalingTypeNP                      -0.11      0.21    -0.54     0.31 1.00    19824    34300
## SignalingTypeVP                       0.04      0.21    -0.37     0.45 1.00    19077    33491
## SignalingTypeFP                       0.49      0.22     0.06     0.92 1.00    18595    32490
## IsInFullGroup                         0.13      0.17    -0.20     0.47 1.00    15739    29444
## ResourceSpeedslow:SignalingTypeNP     0.35      0.28    -0.19     0.89 1.00    19230    33784
## ResourceSpeedslow:SignalingTypeVP     0.45      0.27    -0.08     0.97 1.00    19105    33209
## ResourceSpeedslow:SignalingTypeFP     0.38      0.27    -0.15     0.92 1.00    19035    32155
##
## Further Distributional Parameters:
##     Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## phi    10.30      0.60     9.14    11.52 1.00    44026    51621
##
## Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
## and Tail_ESS are effective sample size measures, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).

Model diagnostics

m.CollectedPoints.1.yrep = posterior_predict(m.CollectedPoints.1.fit, draws = 1000)

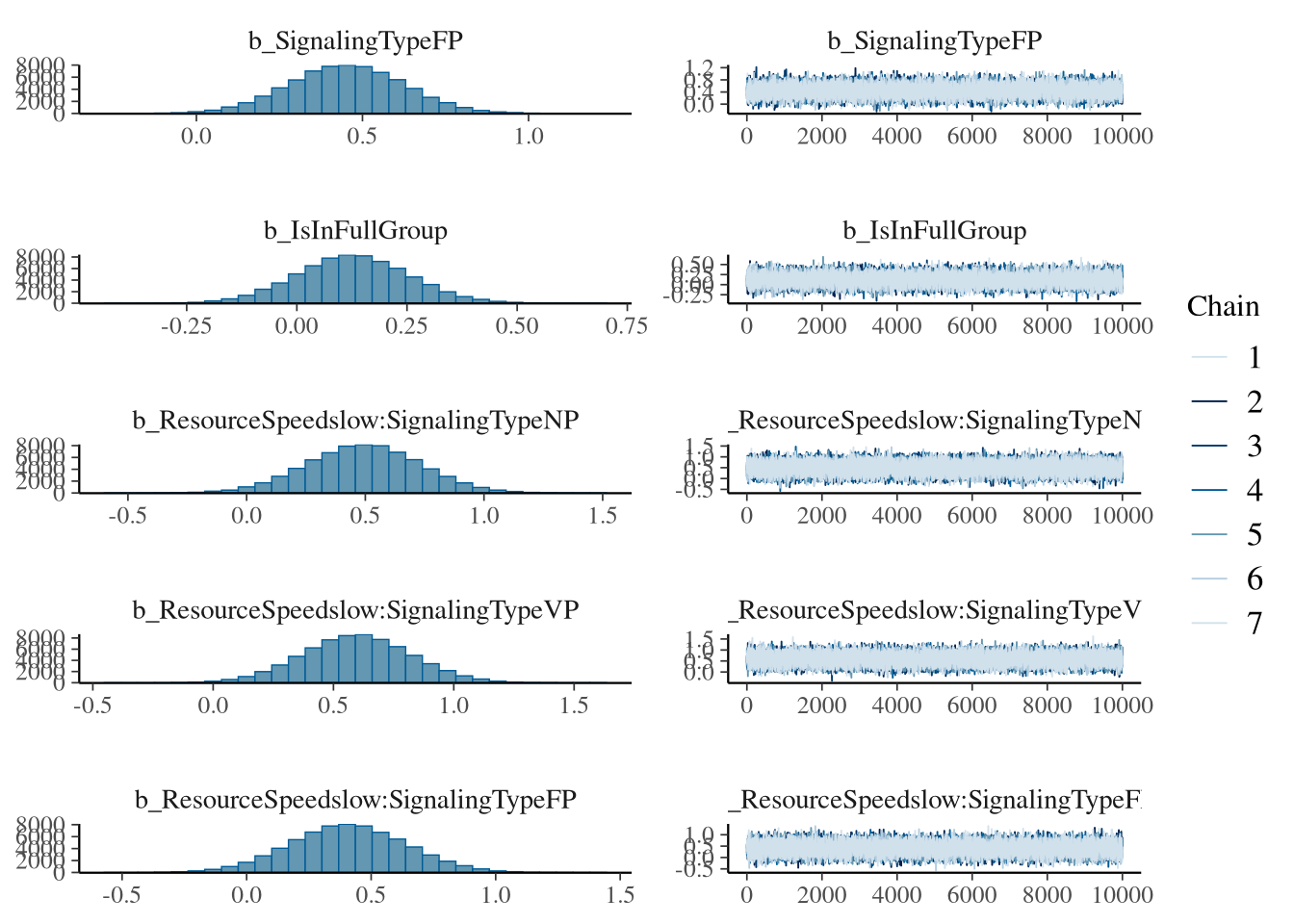

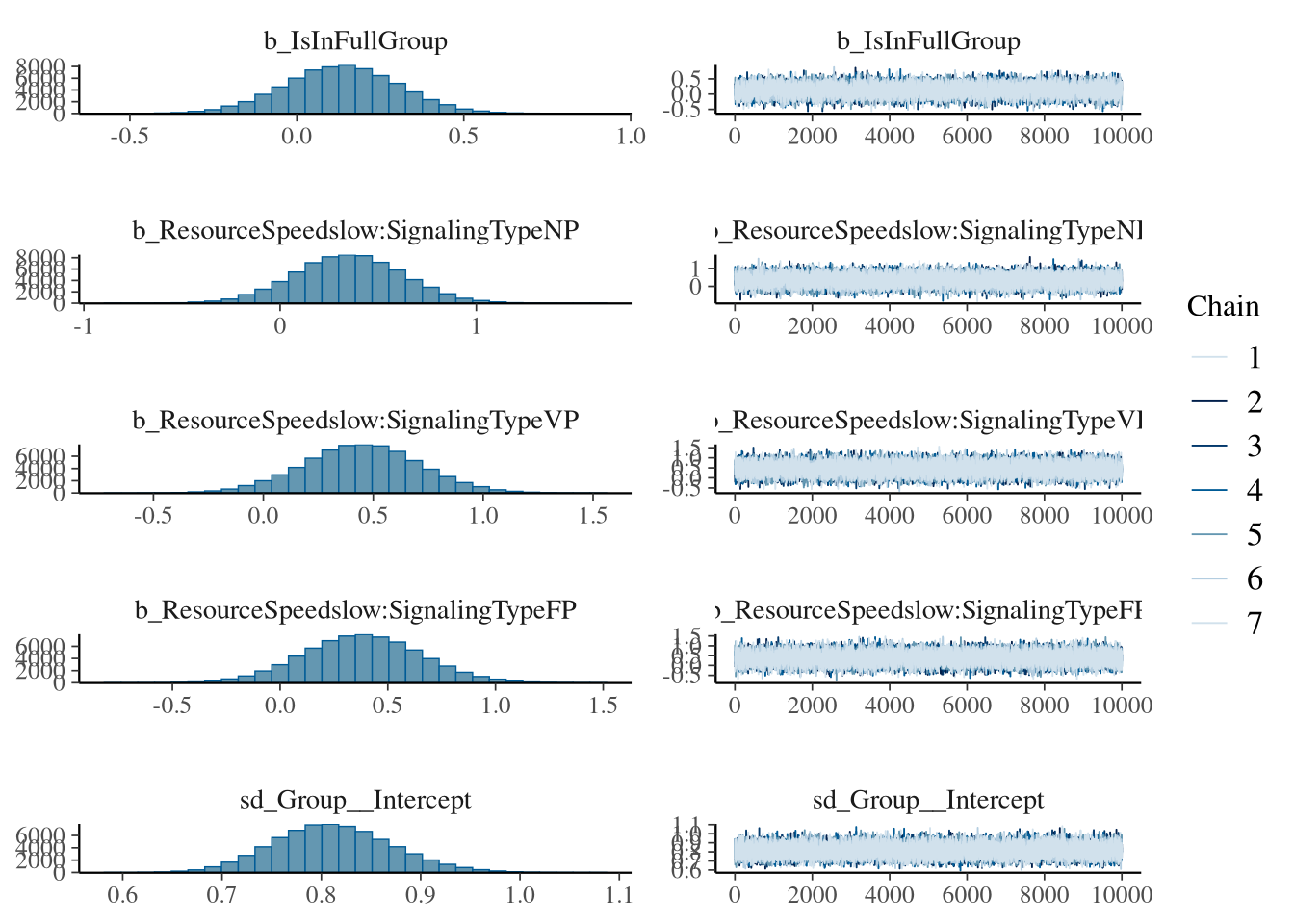

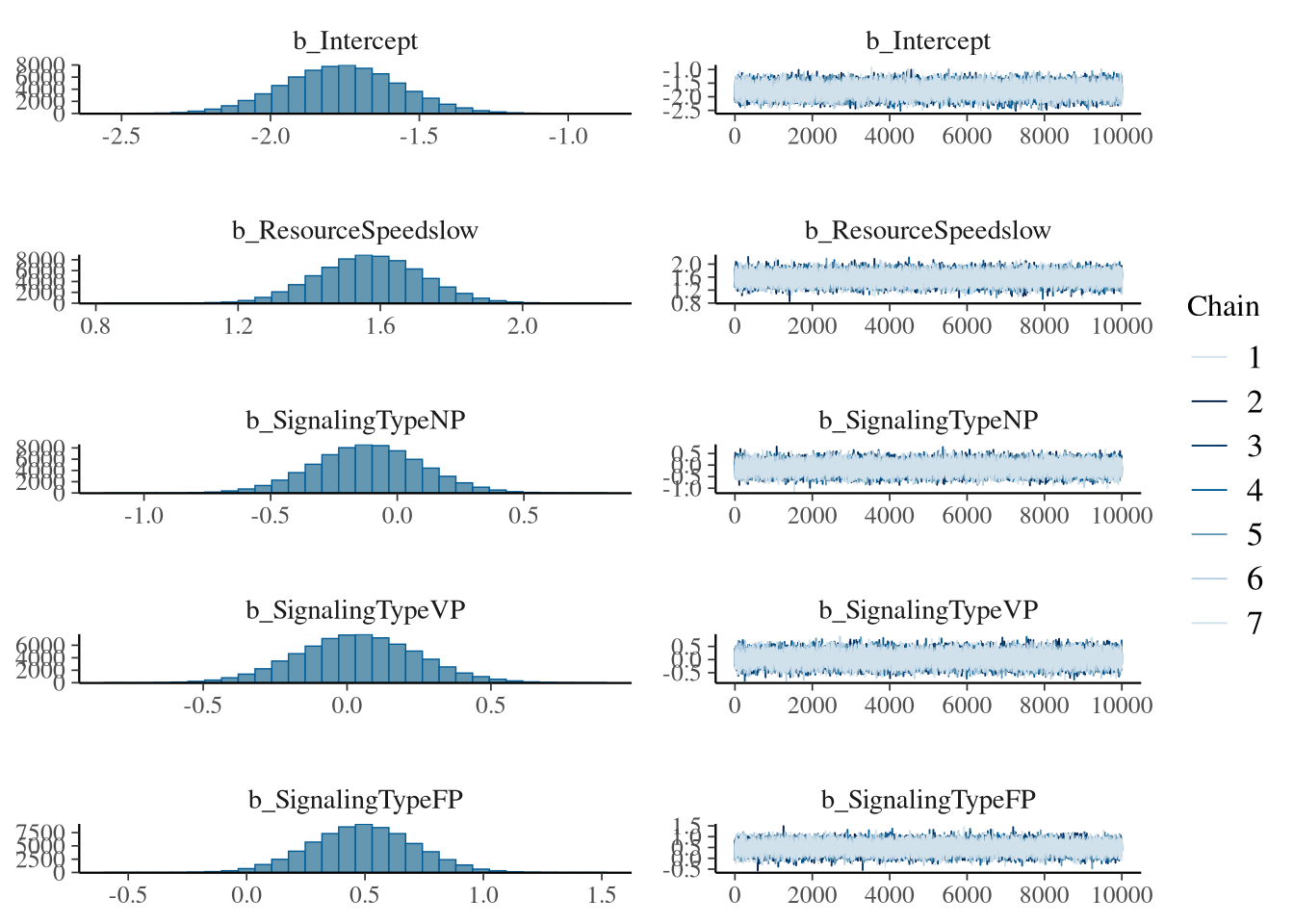

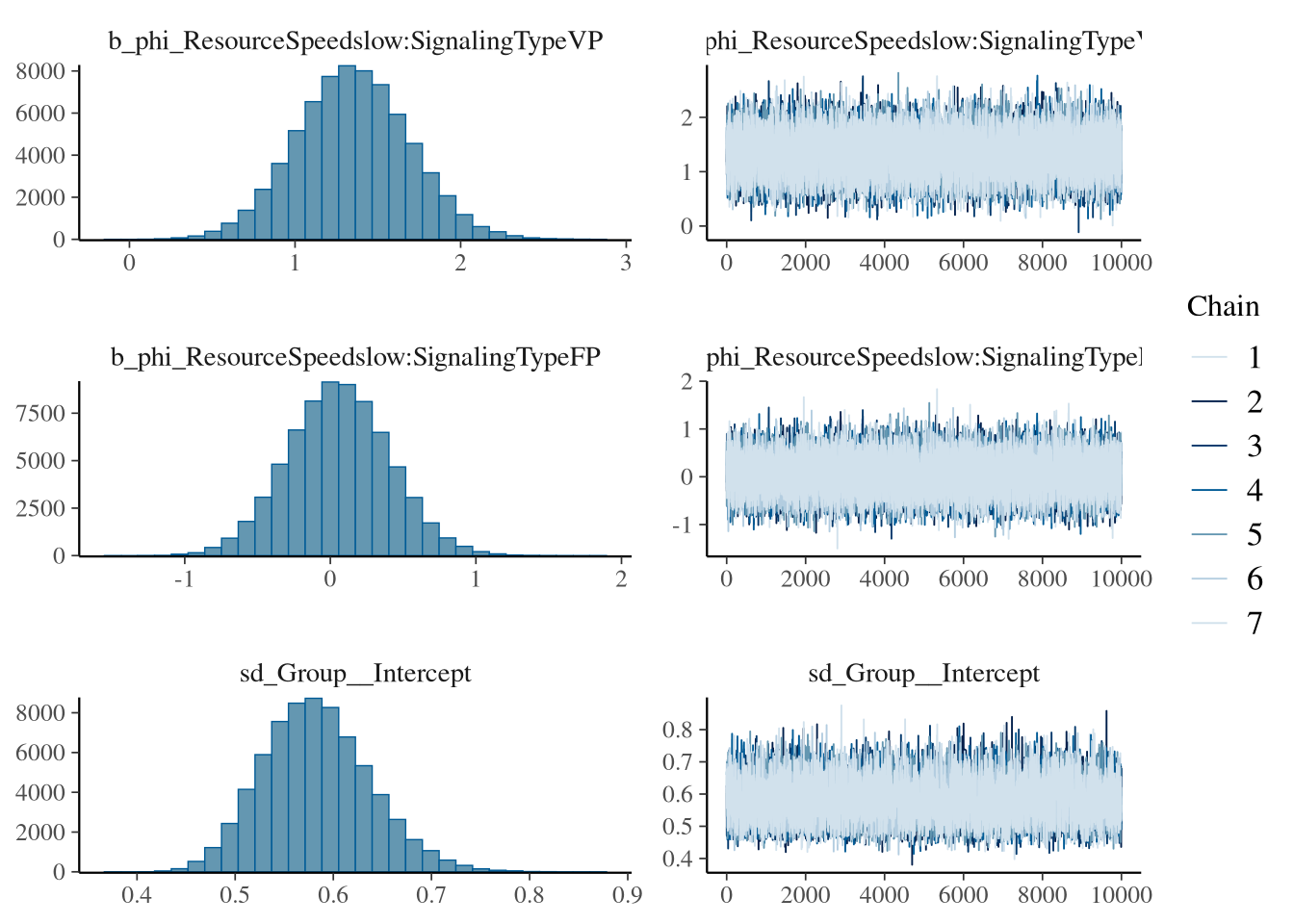

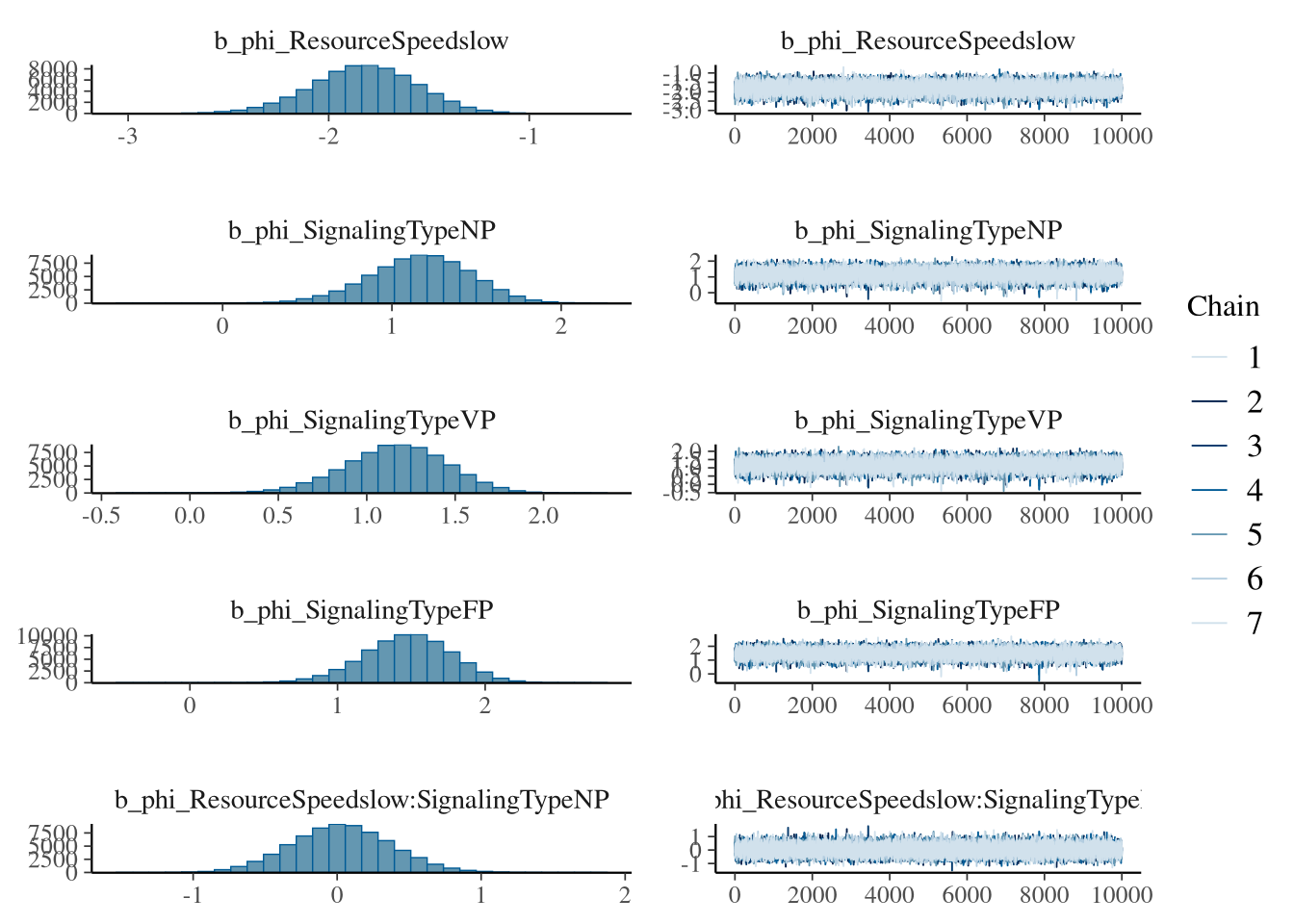

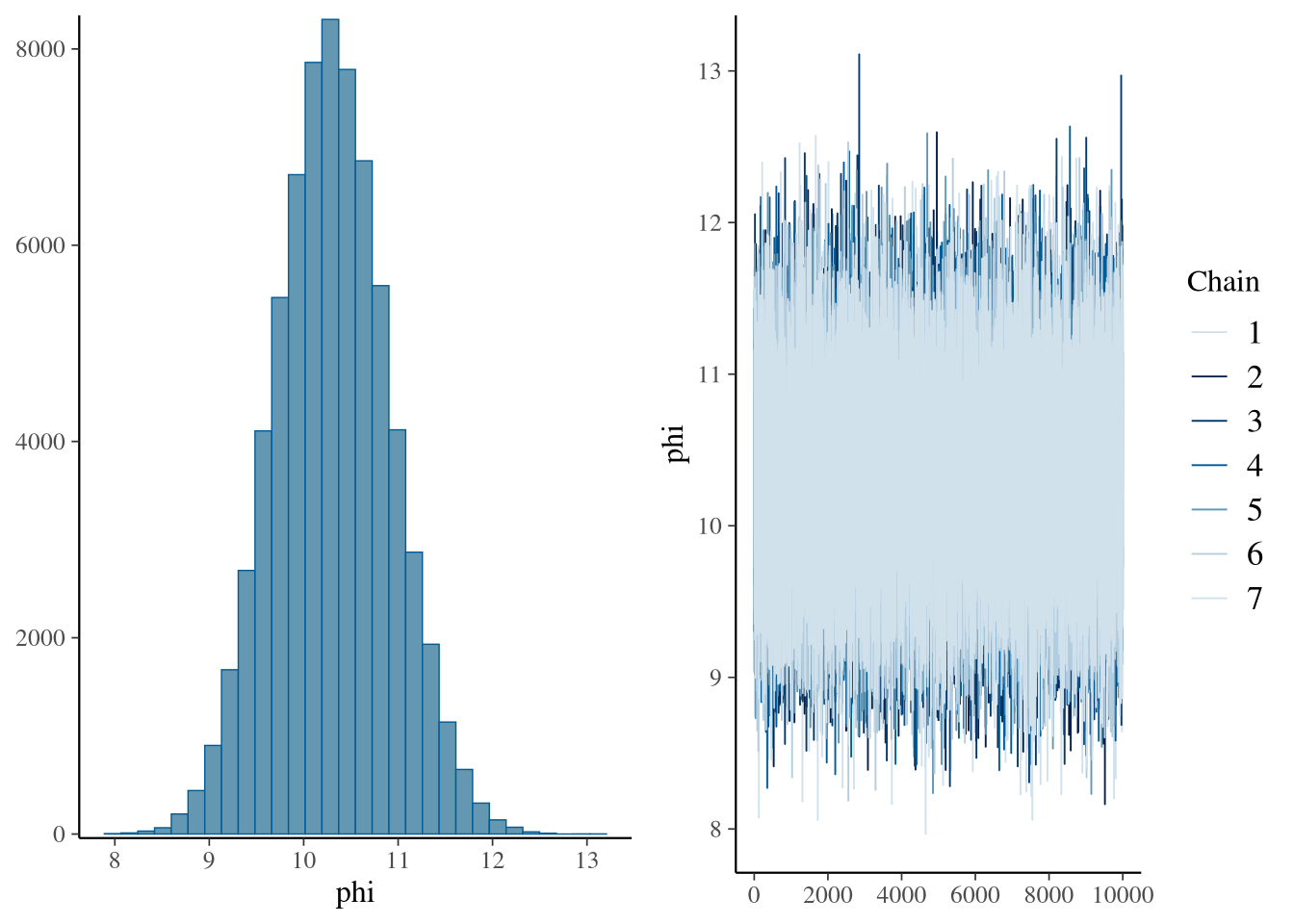

plot(m.CollectedPoints.1.fit, ask = F)

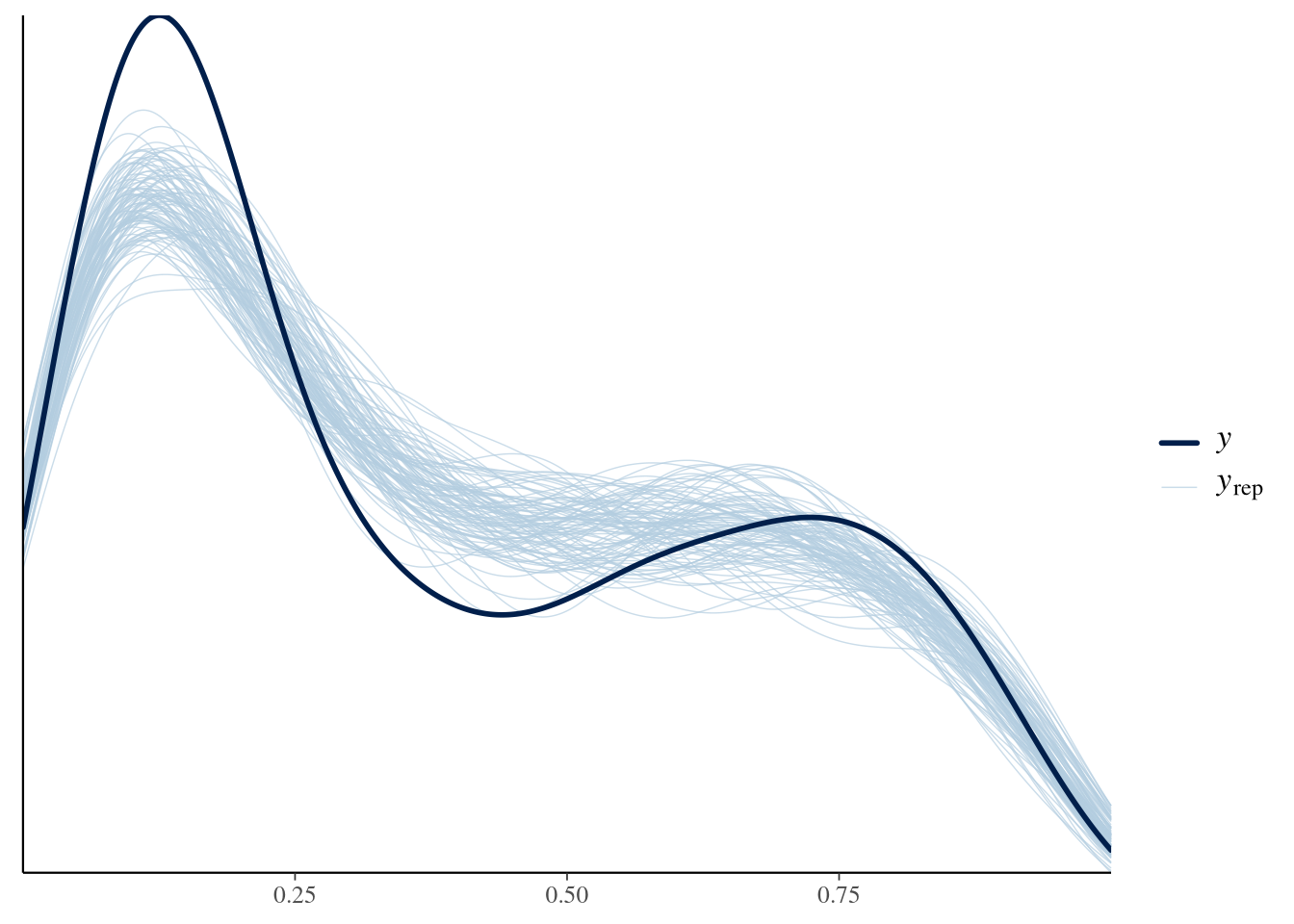

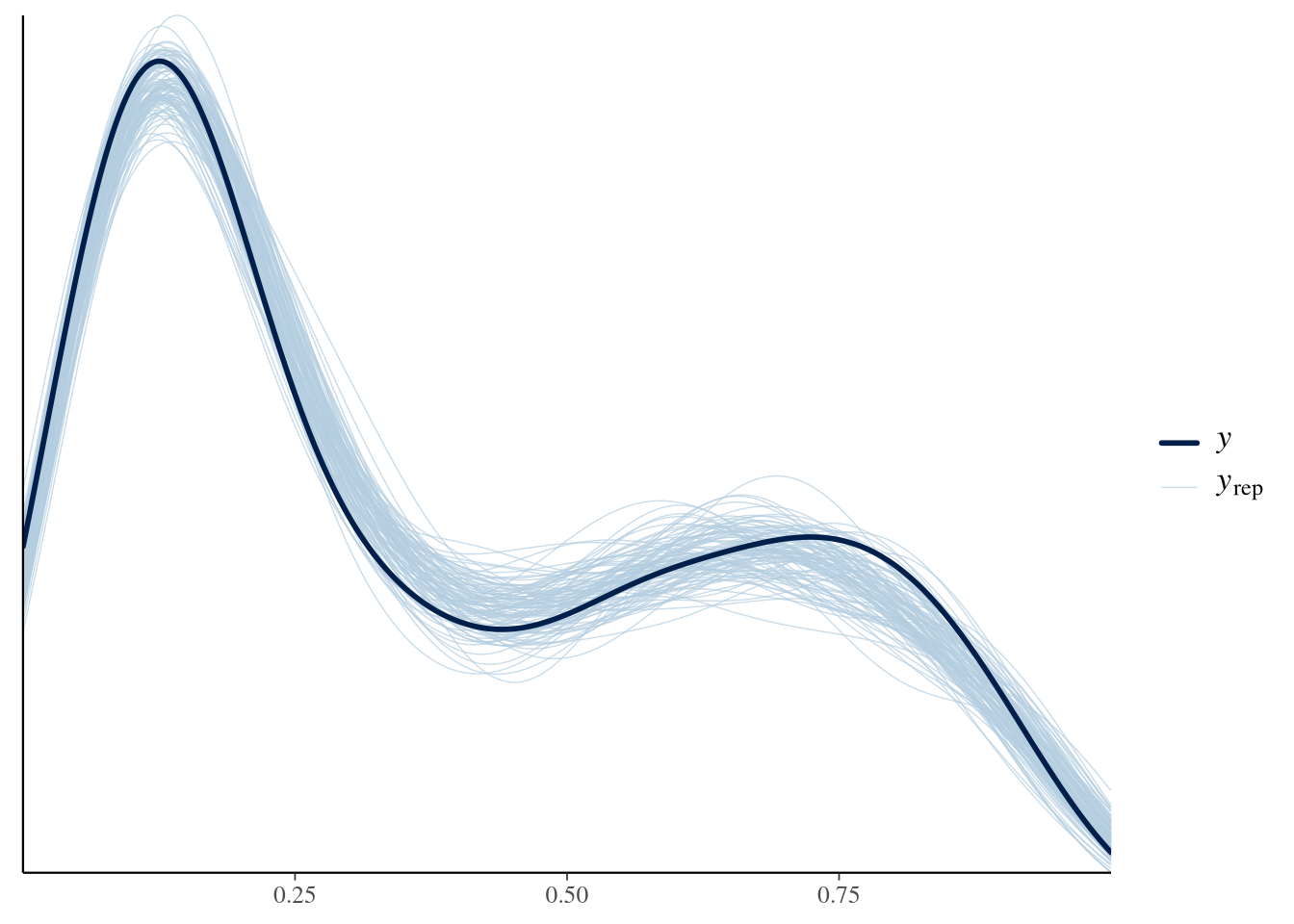

ppc_dens_overlay(m.CollectedPoints.1.y, m.CollectedPoints.1.yrep[1:100, ])

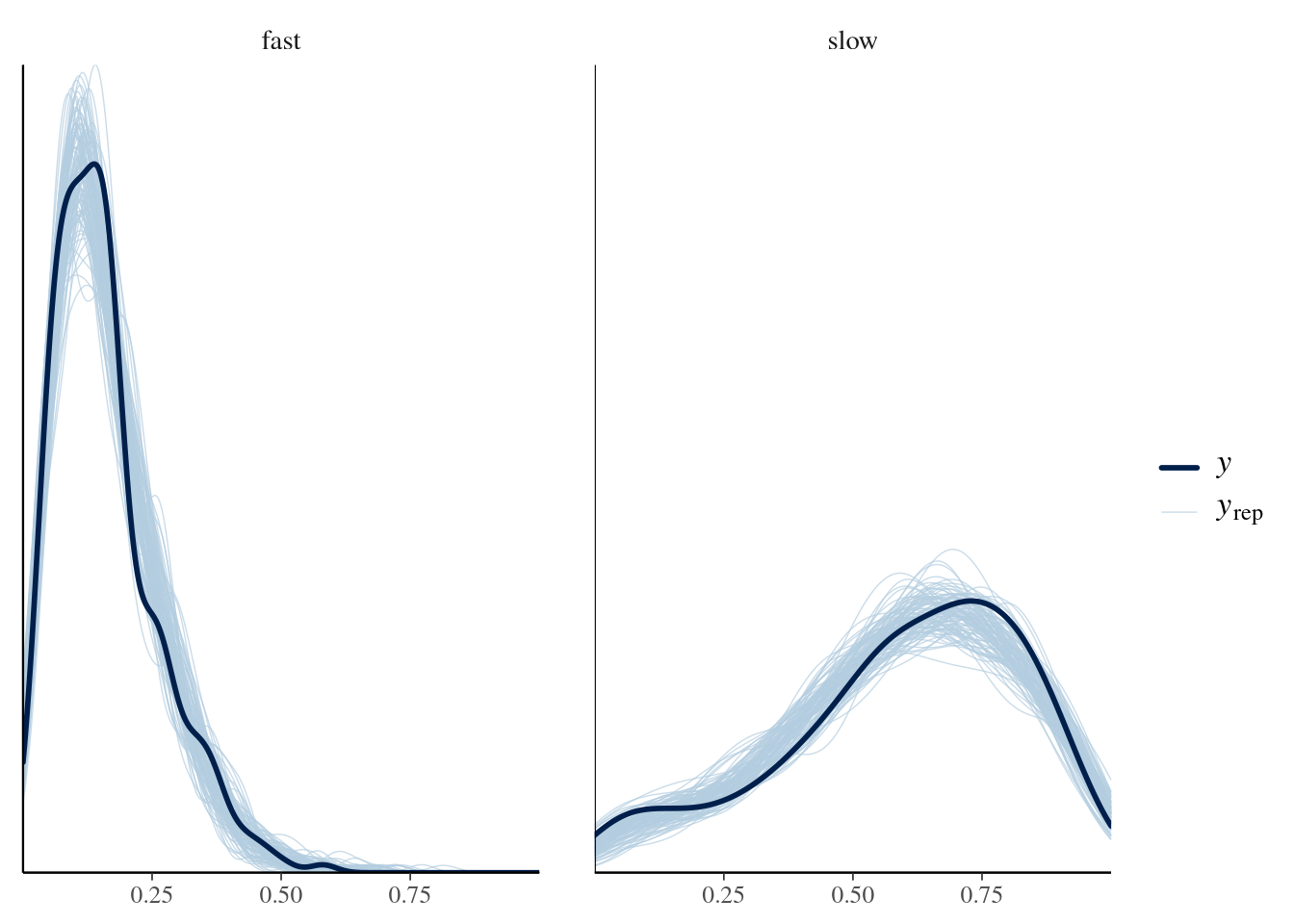

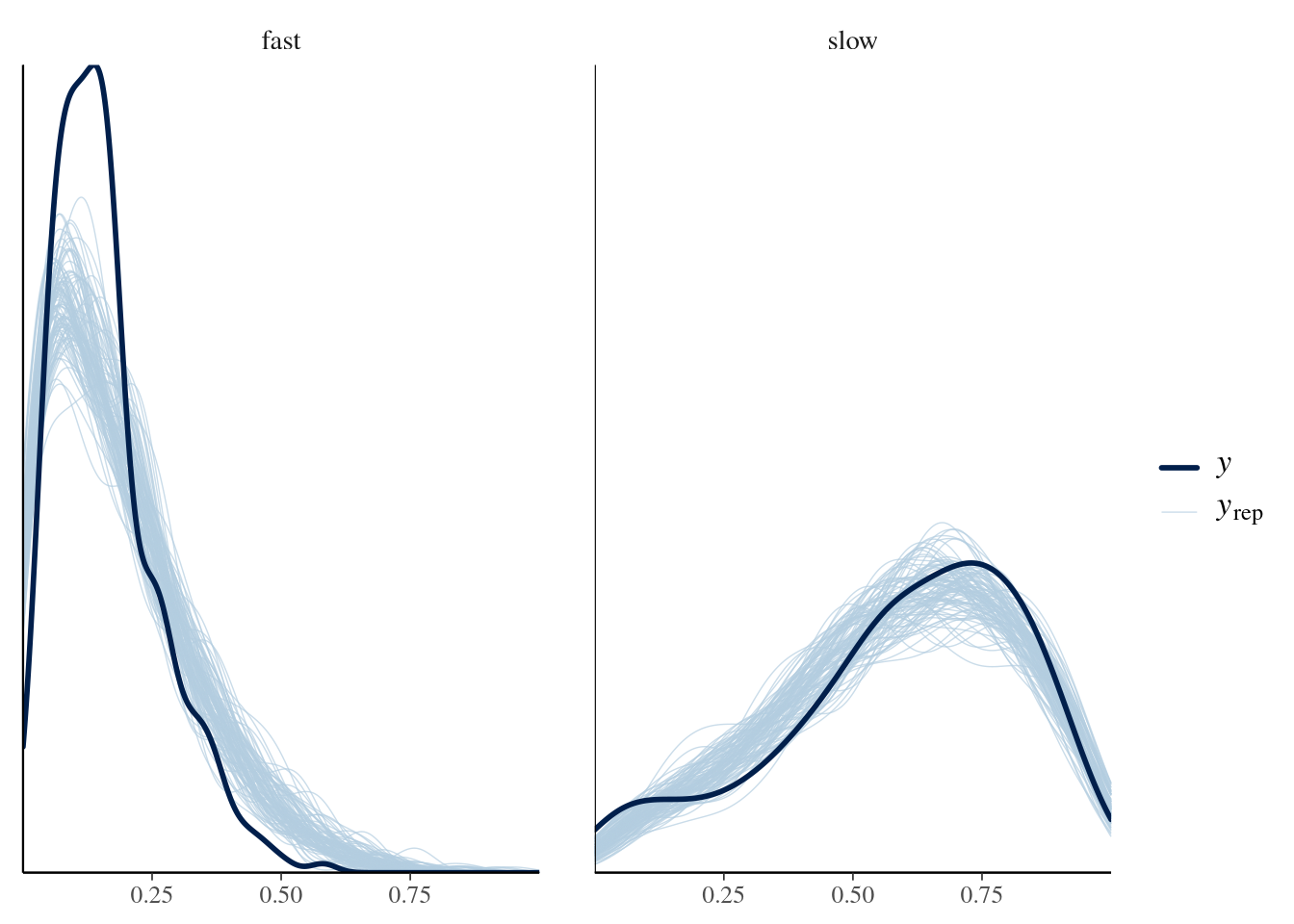

ppc_dens_overlay_grouped(m.CollectedPoints.1.y, m.CollectedPoints.1.yrep[1:100, ],
                         group = m.CollectedPoints.data$ResourceSpeed)

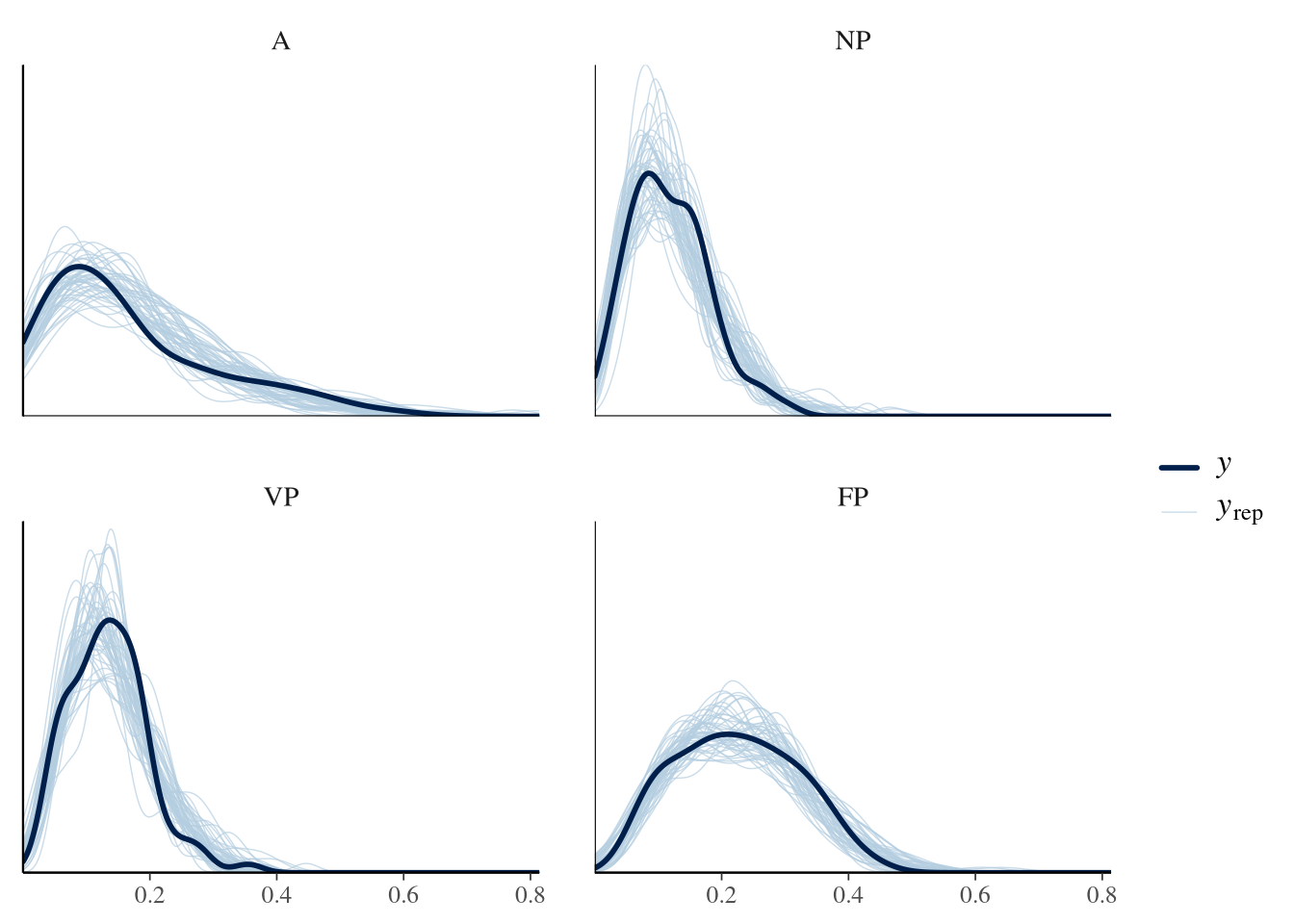

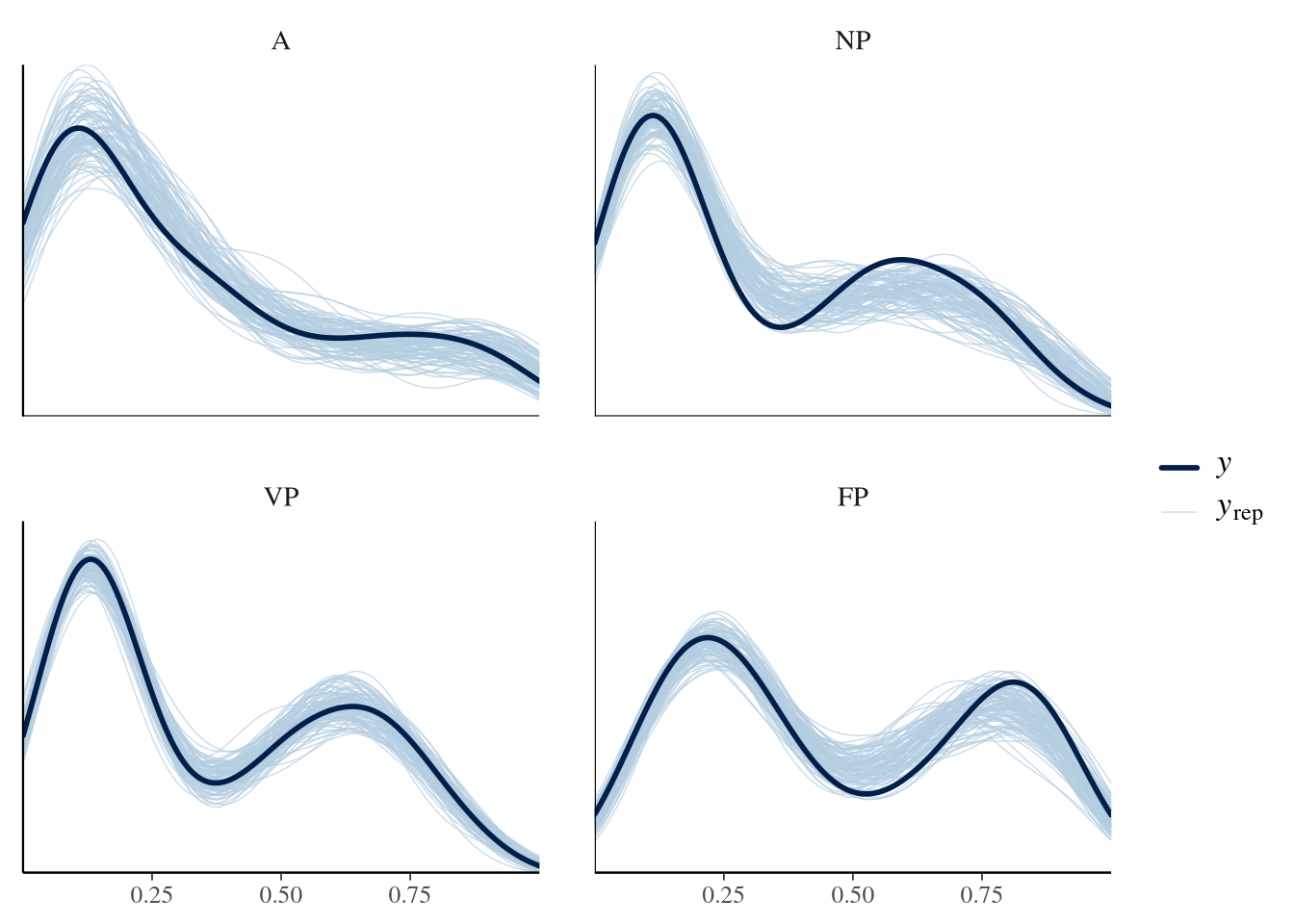

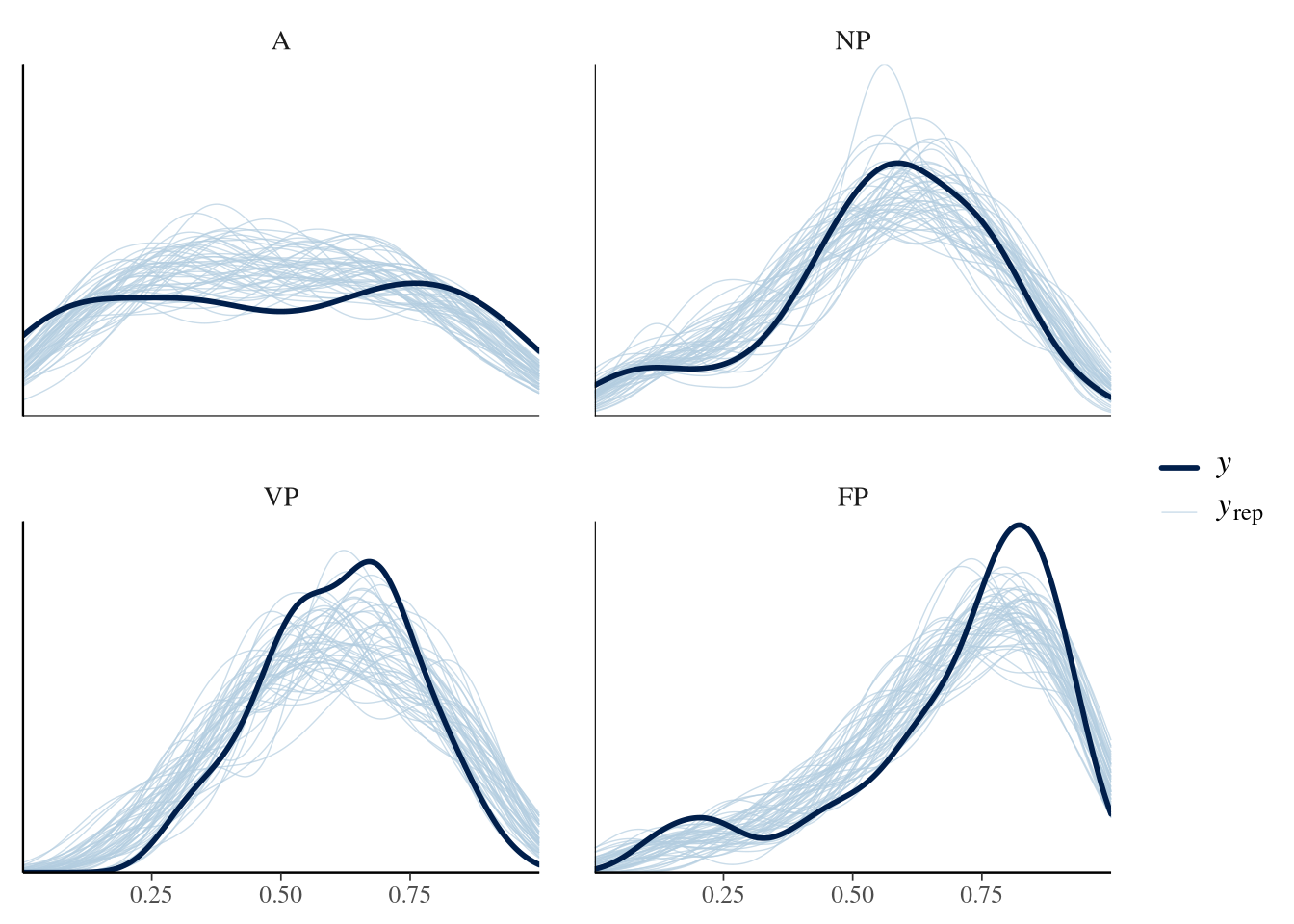

ppc_dens_overlay_grouped(m.CollectedPoints.1.y,m.CollectedPoints.1.yrep[1:100, ],
                         group = m.CollectedPoints.data$SignalingType)

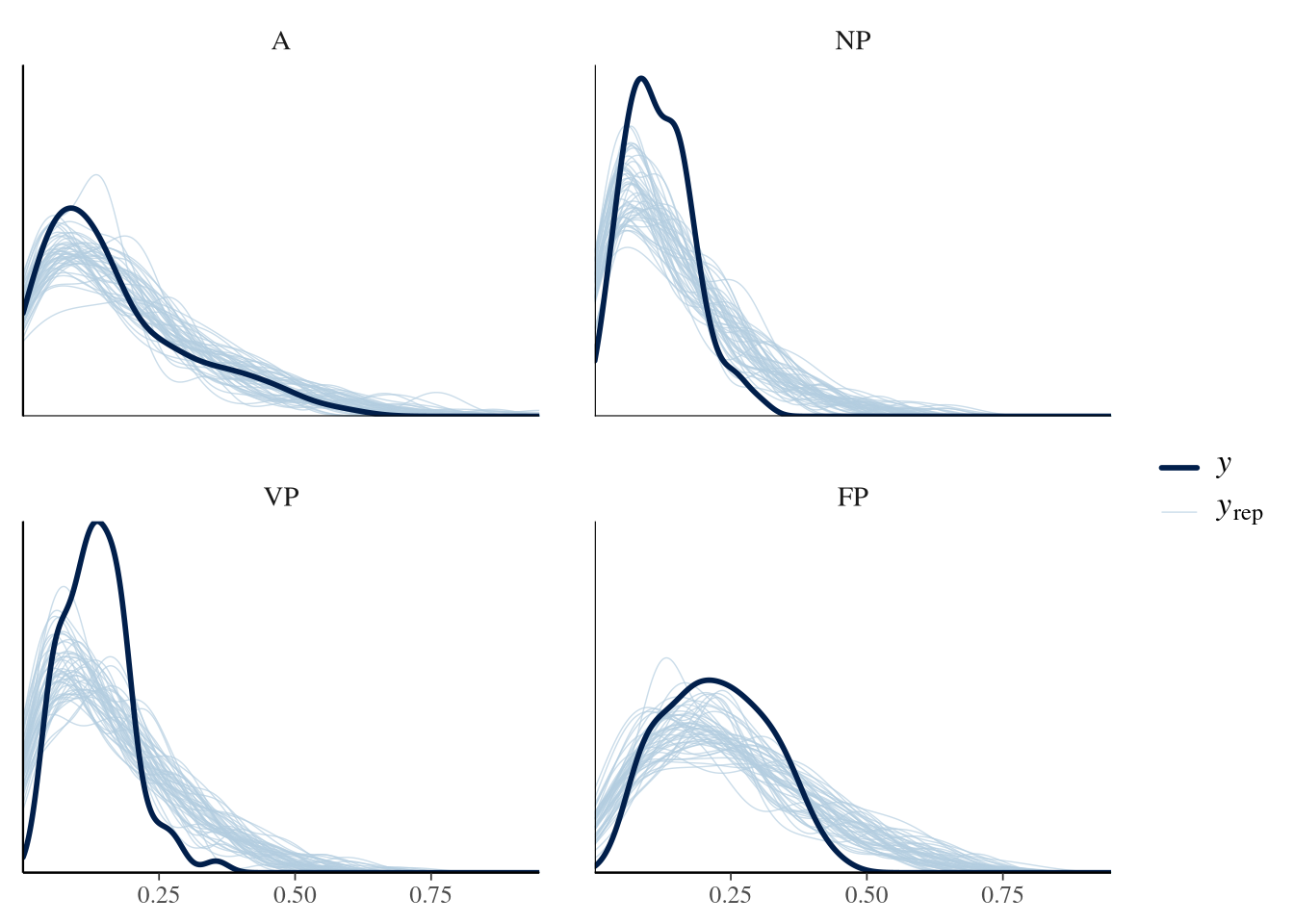

group <- m.CollectedPoints.data$SignalingType
mask <- m.CollectedPoints.data$ResourceSpeed == 'fast'

ppc_dens_overlay_grouped(m.CollectedPoints.1.y[mask],
                         m.CollectedPoints.1.yrep[1:50, mask],
                         group = group[mask])

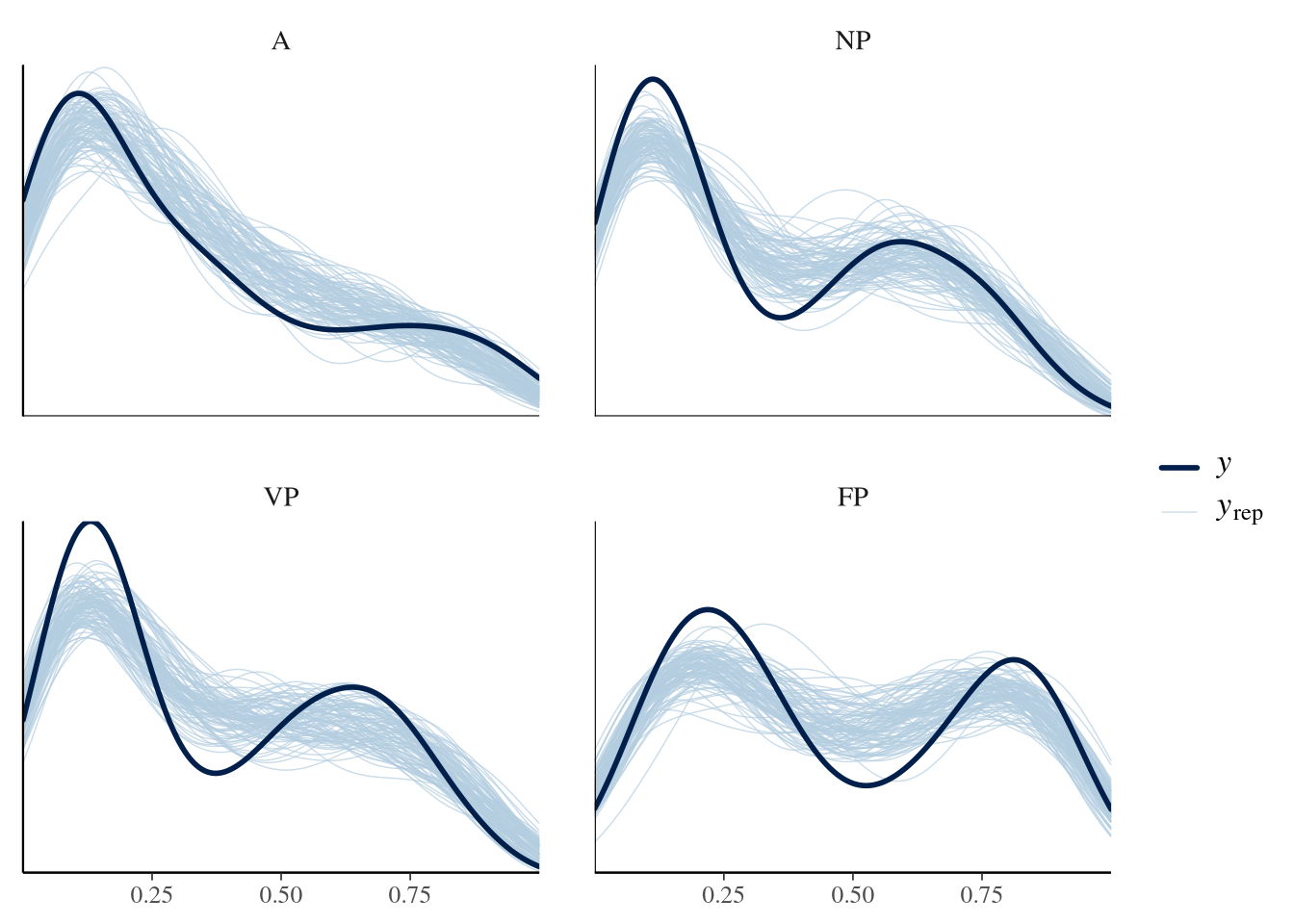

group <- m.CollectedPoints.data$SignalingType
mask <- m.CollectedPoints.data$ResourceSpeed == 'slow'

ppc_dens_overlay_grouped(m.CollectedPoints.1.y[mask],
                         m.CollectedPoints.1.yrep[1:50, mask],
                         group = group[mask])

Model predictions

Condition comparisons

m.CollectedPoints.1.emmeans_contrast_draws.1 <- m.CollectedPoints.1.fit %>%
  emmeans(~ ResourceSpeed,
          epred = TRUE,
          re_formula = m.CollectedPoints.1.formula_comparison,
          type = "response",
          ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws() %>%
  mutate(.value = .value * empirical_max)

m.CollectedPoints.1.comparison.1 <- m.CollectedPoints.1.emmeans_contrast_draws.1 %>%
  ggdist::mean_hdci(.width = 0.9) %>%
  mutate(.value = round(.value, 2), .lower = round(.lower, 2), .upper = round(.upper, 2))

m.CollectedPoints.1.comparison.1 %>%
  knitr::kable("html", digits = 2) %>% kable_classic(full_width = T, position = "center", )

contrast	.value	.lower	.upper	.width	.point	.interval
slow - fast	10046.02	8928.36	11157.59	0.9	mean	hdci

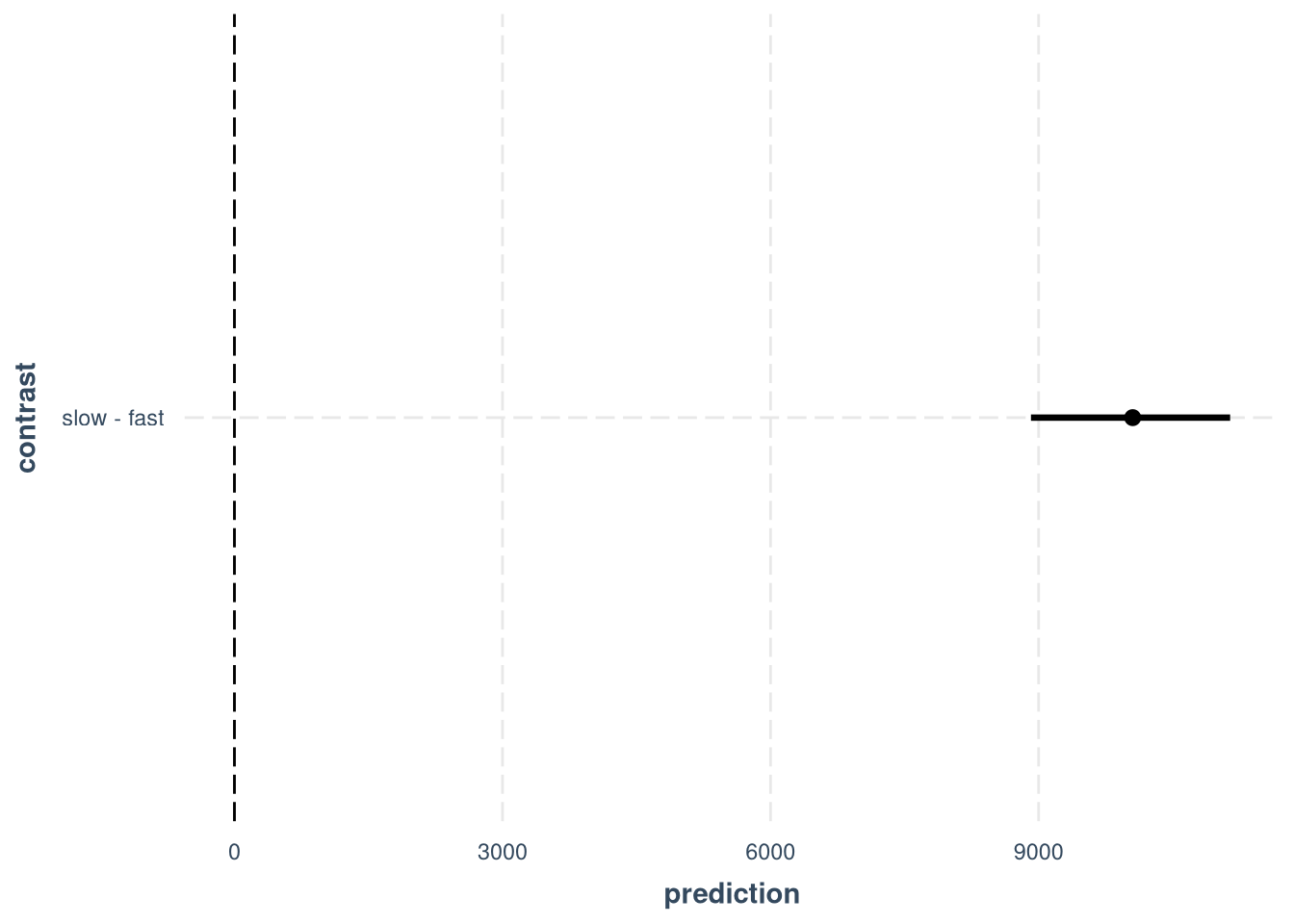

m.CollectedPoints.1.emmeans_contrast_draws.1 %>%
  rename(prediction = .value) %>%
  ggplot(aes(y = contrast, x = prediction)) +
  stat_pointinterval(.width = 0.9) +
  geom_vline(aes(xintercept=0), linetype="longdash") +
  theme_nice()

m.CollectedPoints.1.emmeans_contrast_draws.2 <- m.CollectedPoints.1.fit %>%
  emmeans(~ SignalingType * ResourceSpeed,
          epred = TRUE,
          type = "response",
          re_formula = m.CollectedPoints.1.formula_comparison
         ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws() %>%
  mutate(.value = .value * empirical_max)

ResourceSpeed	SignalingType	contrast	.value	.lower	.upper	.width	.point	.interval
.	A	slow - fast	8023.29	6673.11	9330.67	0.9	mean	hdci
.	FP	slow - fast	11379.82	9233.70	13545.33	0.9	mean	hdci
.	NP	slow - fast	9862.00	7702.52	12020.20	0.9	mean	hdci
.	VP	slow - fast	10918.96	8798.30	13053.67	0.9	mean	hdci
fast	.	FP - A	1964.19	420.95	3458.98	0.9	mean	hdci
fast	.	FP - NP	2308.73	539.63	4011.35	0.9	mean	hdci
fast	.	FP - VP	1817.67	50.50	3509.43	0.9	mean	hdci
fast	.	NP - A	-344.54	-1476.70	773.02	0.9	mean	hdci
fast	.	VP - A	146.53	-1034.41	1320.03	0.9	mean	hdci
fast	.	VP - NP	491.07	-955.07	1943.32	0.9	mean	hdci
slow	.	FP - A	5320.73	3197.98	7406.33	0.9	mean	hdci
slow	.	FP - NP	3826.55	1193.00	6499.61	0.9	mean	hdci
slow	.	FP - VP	2278.53	-369.19	4904.94	0.9	mean	hdci
slow	.	NP - A	1494.17	-792.99	3875.89	0.9	mean	hdci
slow	.	VP - A	3042.20	746.87	5361.71	0.9	mean	hdci
slow	.	VP - NP	1548.03	-1348.43	4345.81	0.9	mean	hdci

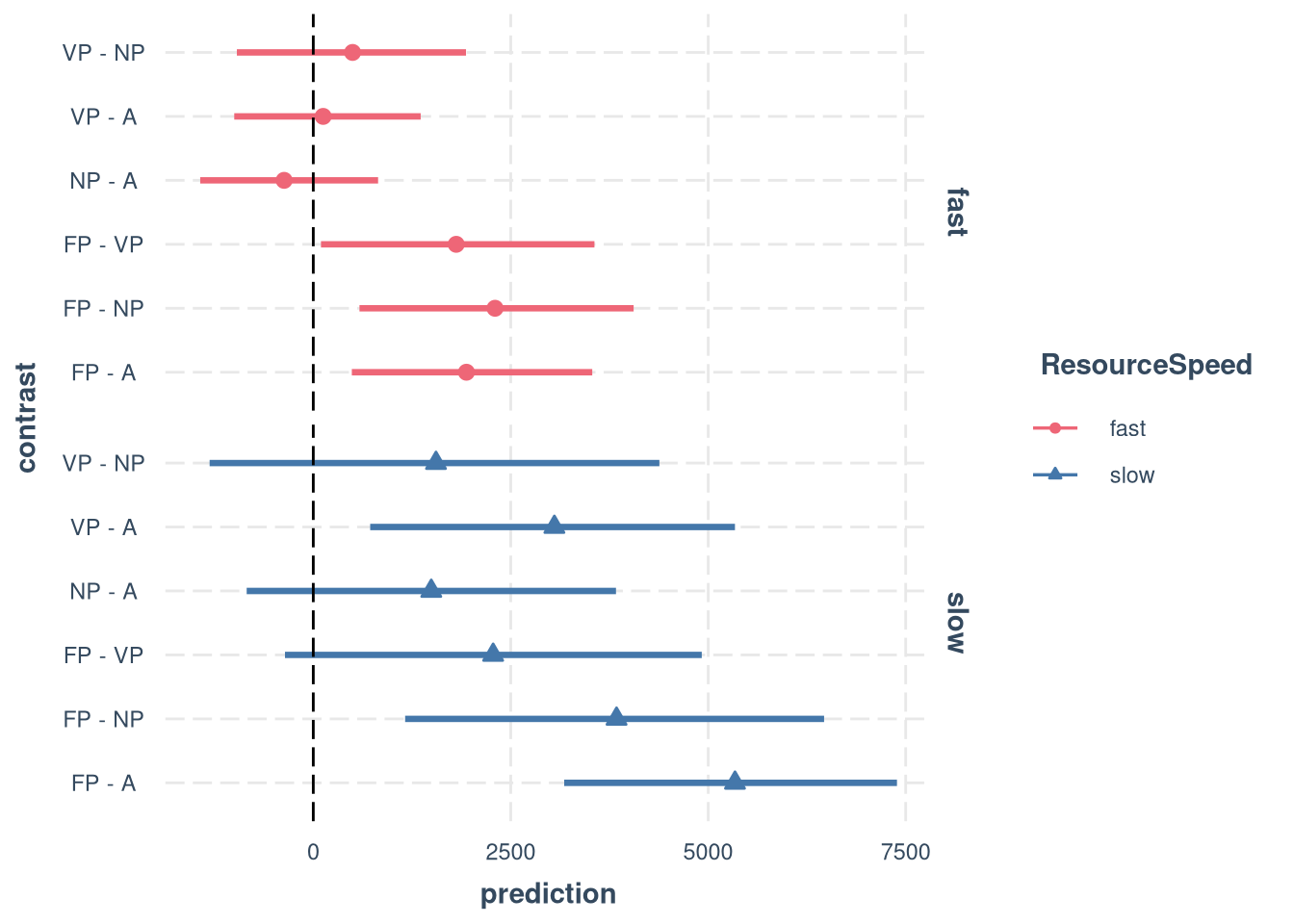

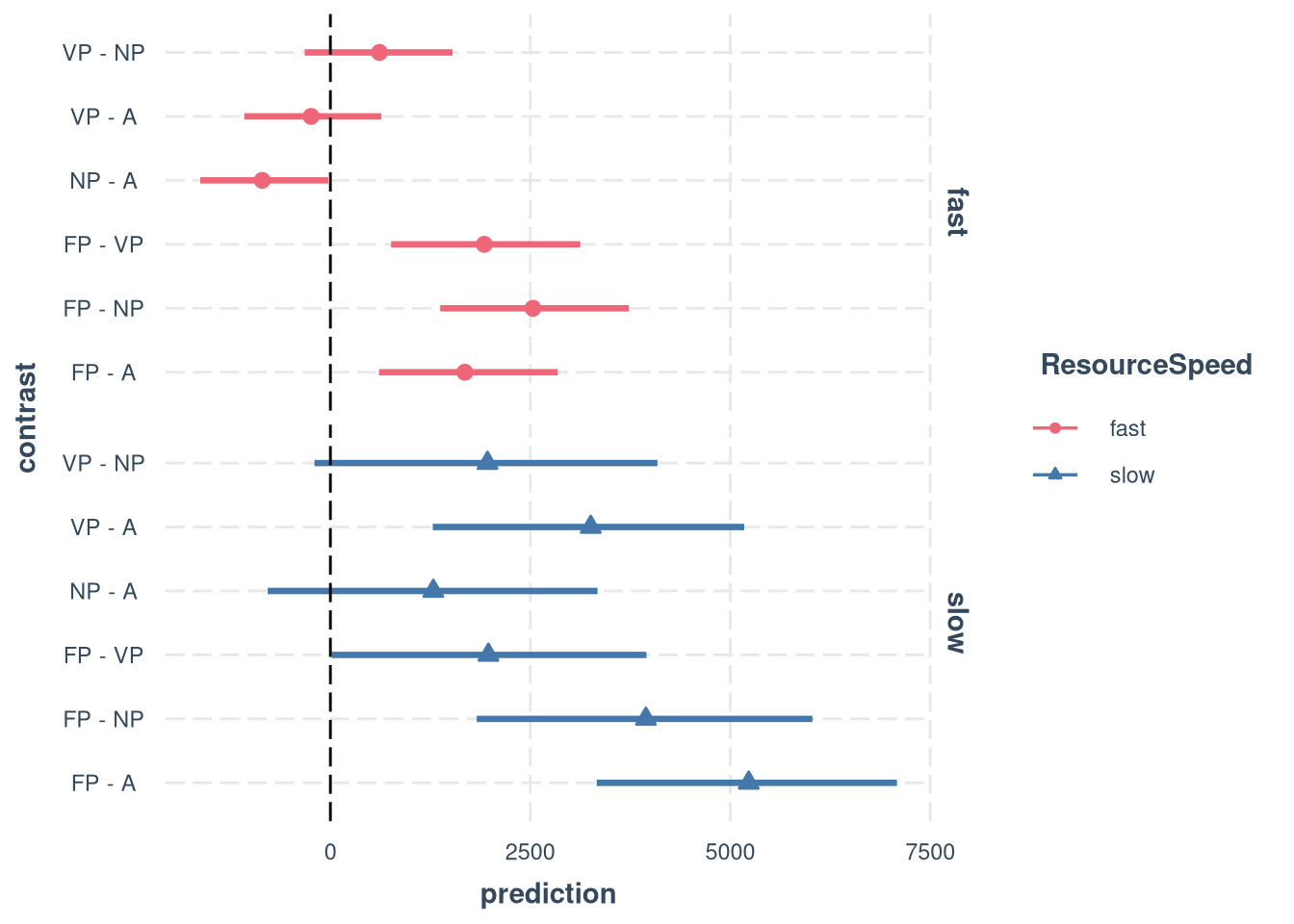

m.CollectedPoints.1.emmeans_contrast_draws.2 %>%
  filter(ResourceSpeed != '.') %>%
  rename(prediction = .value) %>%
  ggplot(
    aes(y = contrast,
        x = prediction,
        color = ResourceSpeed, shape = ResourceSpeed, fill = ResourceSpeed)) +
  facet_grid(rows = vars(ResourceSpeed)) +
  stat_pointinterval(.width = 0.9) +
  scale_color_manual(values = get_colors("Qual2", num.colors = 2, reverse = TRUE, gradient = FALSE)) +
  scale_fill_manual(values = get_colors("Qual2", num.colors = 2, reverse = TRUE, gradient = FALSE)) +
  scale_shape_manual(values = c(21, 24)) +
  geom_vline(aes(xintercept=0), linetype="longdash") +
  theme_nice()

m.CollectedPoints.1.comparison.combined_table <- bind_rows(
  m.CollectedPoints.1.comparison.1,
  m.CollectedPoints.1.comparison.2
) %>%
  select(ResourceSpeed, SignalingType, contrast, .value, .lower, .upper) %>%
  mutate(
    ResourceSpeed = ifelse(is.na(ResourceSpeed), ".", as.character(ResourceSpeed)),
    SignalingType = ifelse(is.na(SignalingType), ".", as.character(SignalingType)),
    sig = (.lower * .upper) > 0,
    Estimate = sprintf("%.2f", .value),
    Estimate = ifelse(sig, paste0("\\textbf{", Estimate, "}"), Estimate),
    hpdi = sprintf("[%.2f, %.2f]", .lower, .upper),
    hpdi = ifelse(sig, paste0("\\textbf{", hpdi, "}"), hpdi)
  ) %>%
  select(ResourceSpeed, SignalingType, contrast, Estimate, hpdi)

# (Optional) Rename columns for publication
colnames(m.CollectedPoints.1.comparison.combined_table) <- c(
  "Resource Speed", "Signaling Type", "Contrast", "Mean", "90\\% HPDI"
)


kbl <- kable(
  m.CollectedPoints.1.comparison.combined_table,
  format = "latex",
  booktabs = TRUE,
  align = c("l", "l", "l", "r", "r"),
  caption = "Posterior Estimates Collected Points",
  escape = FALSE
  ) %>%
    kable_styling(latex_options = "hold_position") %>%
    row_spec(0, bold = TRUE)

unique_speeds <- unique(m.CollectedPoints.1.comparison.combined_table$`Resource Speed`)
start <- 1
for (speed in unique_speeds) {
  n_rows <- sum(m.CollectedPoints.1.comparison.combined_table$`Resource Speed` == speed)
  if (speed != ".") {
    kbl <- group_rows(kbl, speed, start, start + n_rows - 1)
  }
  start <- start + n_rows
}

writeLines(kbl, paste0(comparisons, "collected_points_comparison_combined.tex"))

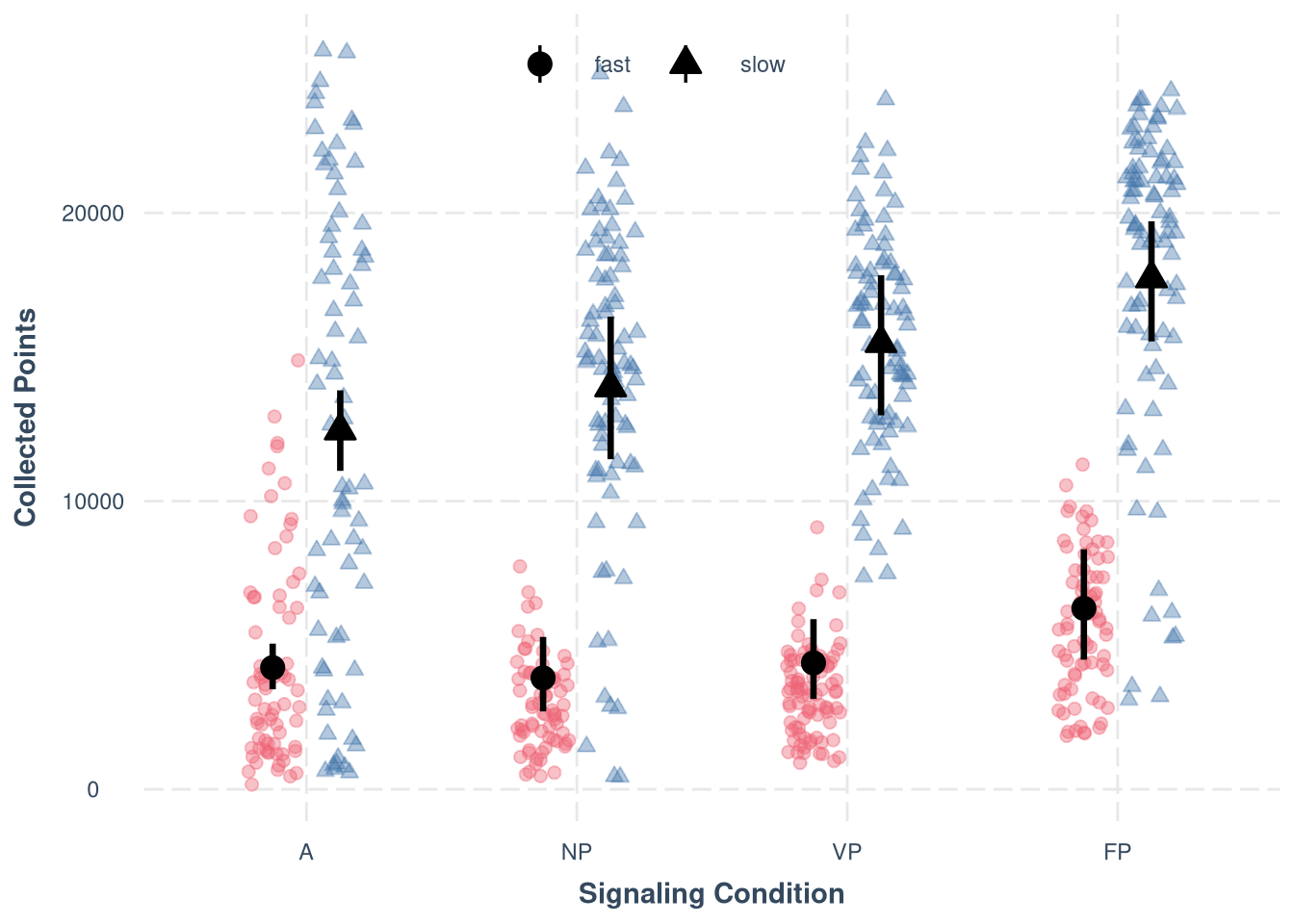

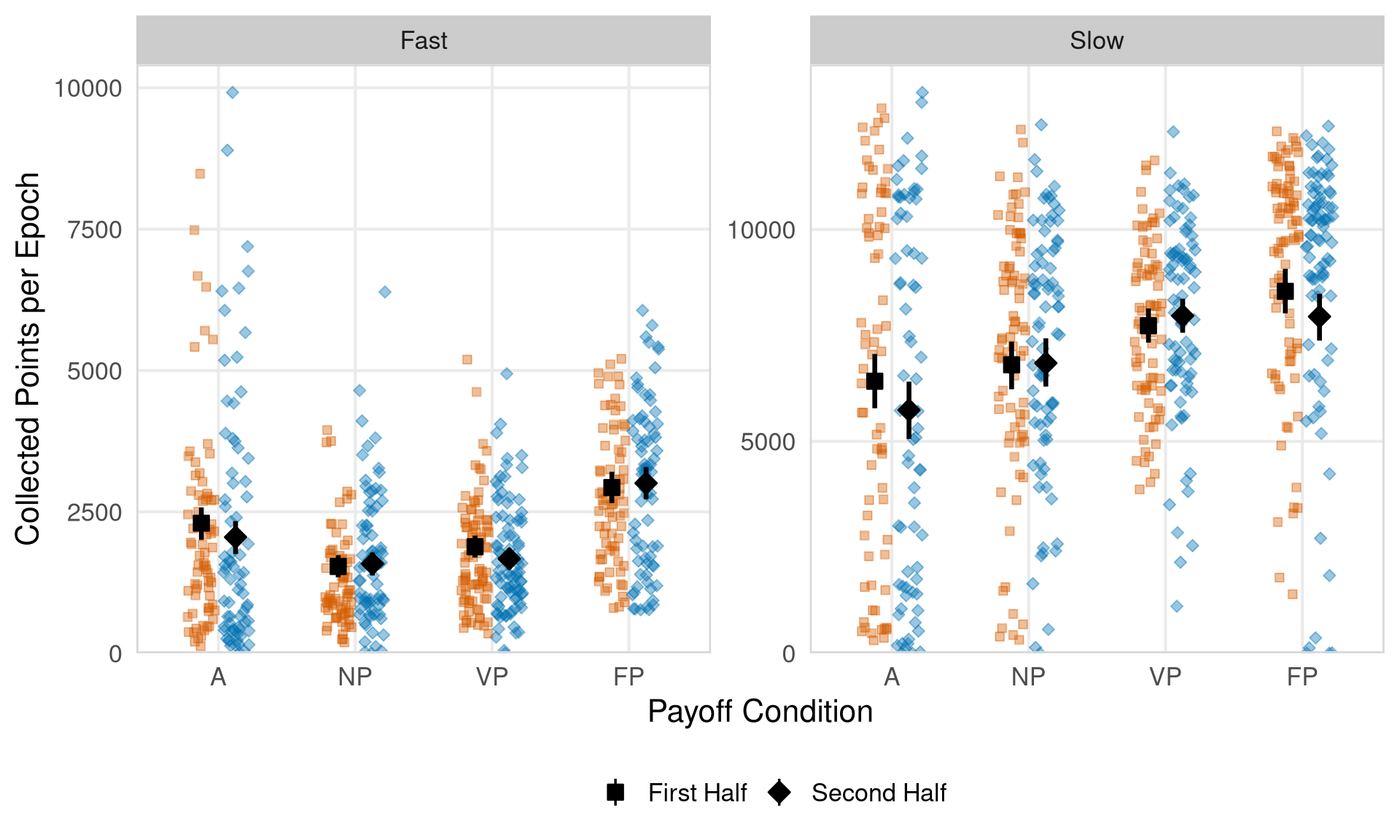

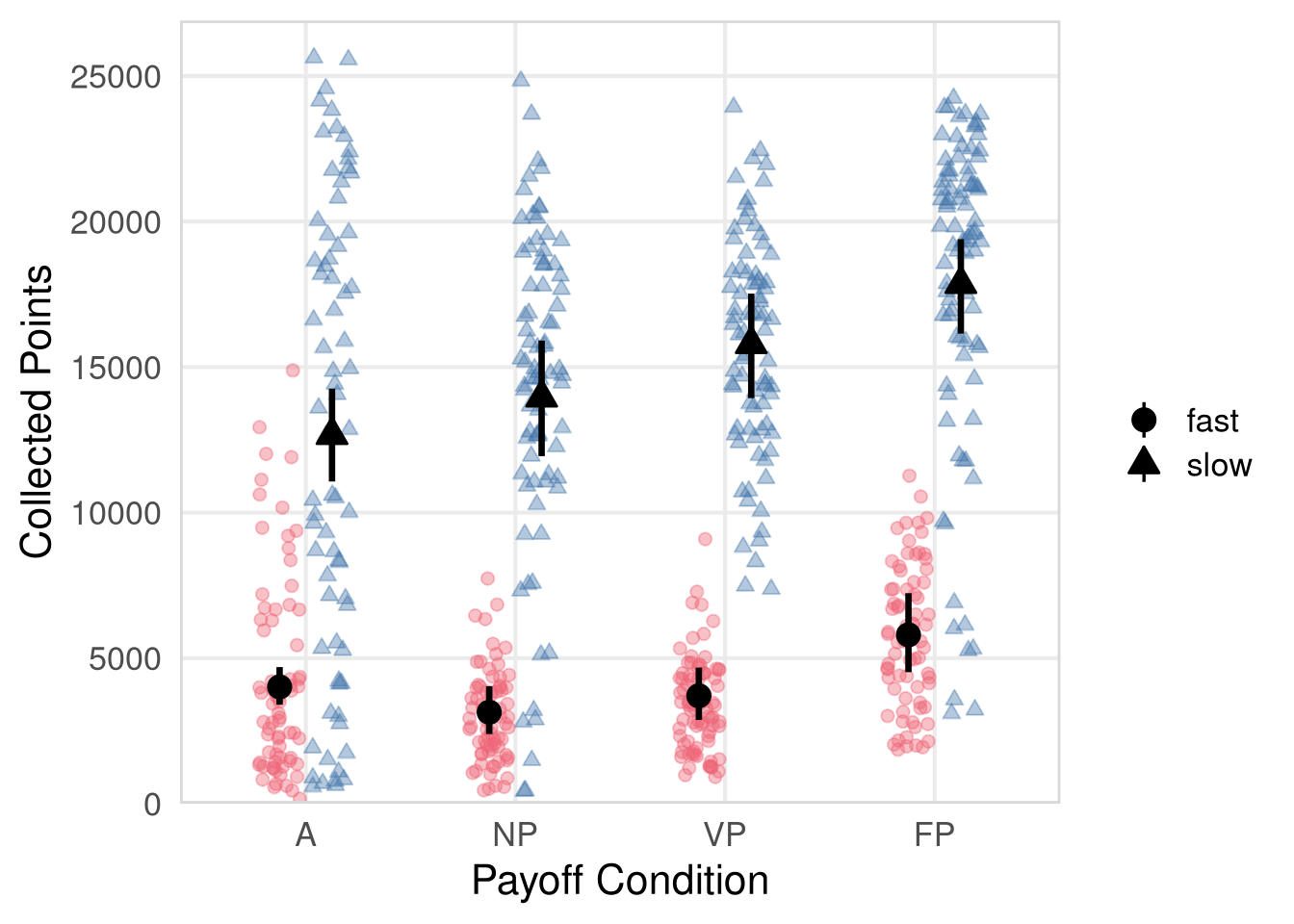

Figure

Model 2

m.CollectedPoints.2.formula <- brmsformula(
  Score_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup + (1 | Group),
  phi ~ ResourceSpeed * SignalingType,
  family = Beta(link = "logit", link_phi = "log")
  )

m.CollectedPoints.2.formula_comparison <- brmsformula(
  Score_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup,
  phi ~ ResourceSpeed * SignalingType
  )

m.CollectedPoints.2.priors <-
    prior(normal(0, 0.5), class = b) +
    prior(normal(0, 1), class = Intercept) +
    prior(gamma(4, 0.1), class = Intercept, dpar = phi, lb = 0) +
    prior(normal(0, 1), class = b, dpar = phi) +
    prior(normal(0, 1), class = sd, lb = 0)

Prior predictive checks

m.CollectedPoints.2.fit_prior <- brm(
  formula = m.CollectedPoints.2.formula,
  data    = m.CollectedPoints.data,
  prior   = m.CollectedPoints.2.priors,
  chains  = 4,
  cores   = 4,
  seed    = 42,
  iter    = 2000,
  file = paste0(fits_path, 'collected_points_2_prior.rds'),
  backend = "cmdstanr",
  threads = threading(100),
  control = list(adapt_delta = 0.95),
  save_pars = save_pars(all = TRUE),
  sample_prior = "only")

m.CollectedPoints.2.y <- m.CollectedPoints.data$Score_0_1

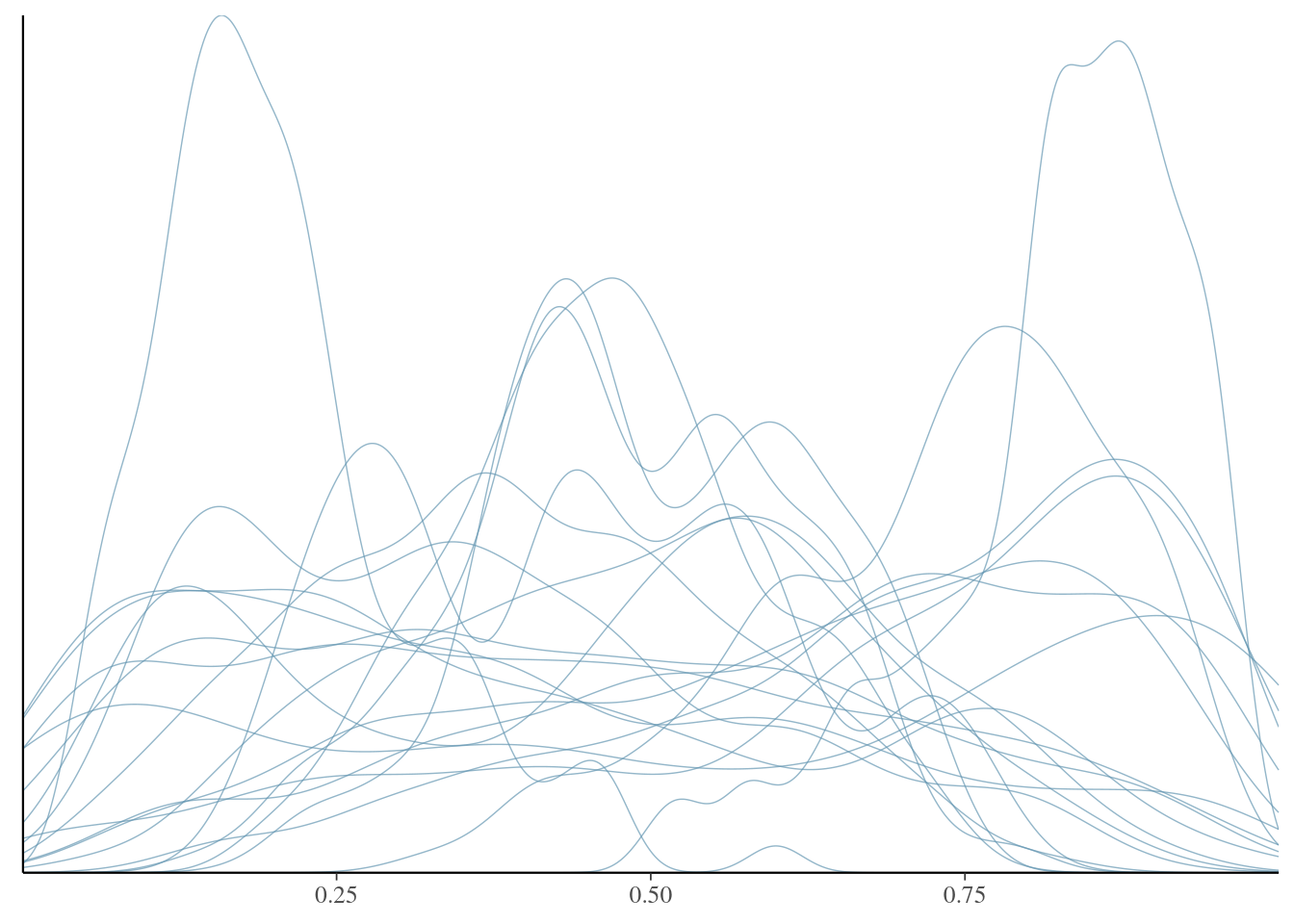

pp_check(m.CollectedPoints.2.fit_prior, prefix = "ppd", ndraw = 20)

summary(m.CollectedPoints.2.fit_prior)

##  Family: beta
##   Links: mu = logit; phi = log
## Formula: Score_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup + (1 | Group)
##          phi ~ ResourceSpeed * SignalingType
##    Data: m.CollectedPoints.data (Number of observations: 621)
##   Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
##          total post-warmup draws = 4000
##
## Multilevel Hyperparameters:
## ~Group (Number of levels: 247)
##               Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## sd(Intercept)     0.79      0.58     0.03     2.20 1.00     3094     1725
##
## Regression Coefficients:
##                                       Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## Intercept                                 0.02      1.13    -2.19     2.18 1.00     7246     2991
## phi_Intercept                            40.06     20.00    10.85    87.83 1.00     6203     2554
## ResourceSpeedslow                        -0.01      0.51    -0.99     1.00 1.00     8165     3175
## SignalingTypeNP                          -0.00      0.49    -0.95     0.95 1.00     6312     2991
## SignalingTypeVP                          -0.01      0.49    -0.95     0.92 1.00     5976     3209
## SignalingTypeFP                           0.00      0.50    -0.98     0.98 1.00     7185     3280
## IsInFullGroup                             0.01      0.49    -0.99     0.95 1.00     6286     3039
## ResourceSpeedslow:SignalingTypeNP         0.00      0.49    -0.95     0.96 1.00     6099     3121
## ResourceSpeedslow:SignalingTypeVP         0.01      0.52    -0.99     1.01 1.00     5793     2854
## ResourceSpeedslow:SignalingTypeFP         0.01      0.51    -1.00     1.00 1.00     6608     3242
## phi_ResourceSpeedslow                    -0.01      1.04    -2.02     2.08 1.00     7024     2989
## phi_SignalingTypeNP                       0.01      1.00    -2.01     1.99 1.00     6608     2911
## phi_SignalingTypeVP                      -0.03      0.98    -1.96     1.90 1.00     5759     2870
## phi_SignalingTypeFP                       0.01      1.00    -1.87     2.02 1.00     7221     2832
## phi_ResourceSpeedslow:SignalingTypeNP    -0.01      1.01    -2.02     1.97 1.00     7275     2883
## phi_ResourceSpeedslow:SignalingTypeVP    -0.01      0.98    -1.96     1.93 1.00     7152     2811
## phi_ResourceSpeedslow:SignalingTypeFP     0.00      1.00    -1.92     1.95 1.00     7047     3125
##
## Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
## and Tail_ESS are effective sample size measures, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).

Model fitting

m.CollectedPoints.2.fit <- brm(
  formula = m.CollectedPoints.2.formula,
  data    = m.CollectedPoints.data,
  prior   = m.CollectedPoints.2.priors,
  chains  = 7,
  cores   = 7,
  seed    = 42,
  iter    = 20000,
  file = paste0(fits_path, 'collected_points_2.rds'),
  backend = "cmdstanr",
  threads = threading(100),
  control = list(adapt_delta = 0.95),
  save_pars = save_pars(all = TRUE)
  )

##  Family: beta
##   Links: mu = logit; phi = log
## Formula: Score_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup + (1 | Group)
##          phi ~ ResourceSpeed * SignalingType
##    Data: m.CollectedPoints.data (Number of observations: 621)
##   Draws: 7 chains, each with iter = 20000; warmup = 10000; thin = 1;
##          total post-warmup draws = 70000
##
## Multilevel Hyperparameters:
## ~Group (Number of levels: 247)
##               Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## sd(Intercept)     0.58      0.05     0.48     0.70 1.00    10131    18475
##
## Regression Coefficients:
##                                       Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## Intercept                                -1.81      0.16    -2.12    -1.51 1.00    17070    31337
## phi_Intercept                             2.68      0.25     2.22     3.22 1.00     9698    12035
## ResourceSpeedslow                         1.66      0.15     1.37     1.95 1.00    34938    42547
## SignalingTypeNP                          -0.29      0.17    -0.62     0.06 1.00    15861    26300
## SignalingTypeVP                          -0.10      0.17    -0.42     0.23 1.00    15174    27652
## SignalingTypeFP                           0.45      0.17     0.11     0.79 1.00    12693    25145
## IsInFullGroup                             0.13      0.13    -0.12     0.38 1.00    14864    26517
## ResourceSpeedslow:SignalingTypeNP         0.49      0.24     0.02     0.96 1.00    20472    31930
## ResourceSpeedslow:SignalingTypeVP         0.60      0.23     0.15     1.04 1.00    16562    29252
## ResourceSpeedslow:SignalingTypeFP         0.41      0.23    -0.05     0.86 1.00    18119    31814
## phi_ResourceSpeedslow                    -1.83      0.26    -2.36    -1.33 1.00    13568    18079
## phi_SignalingTypeNP                       1.16      0.30     0.55     1.72 1.00    12708    17757
## phi_SignalingTypeVP                       1.16      0.29     0.57     1.70 1.00    12291    16317
## phi_SignalingTypeFP                       1.47      0.30     0.86     2.03 1.00    13325    18076
## phi_ResourceSpeedslow:SignalingTypeNP     0.03      0.35    -0.64     0.72 1.00    18293    28298
## phi_ResourceSpeedslow:SignalingTypeVP     1.35      0.34     0.69     2.02 1.00    18344    26362
## phi_ResourceSpeedslow:SignalingTypeFP     0.06      0.35    -0.62     0.75 1.00    18829    27450
##
## Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
## and Tail_ESS are effective sample size measures, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).

Model diagnostics

m.CollectedPoints.2.yrep = posterior_predict(m.CollectedPoints.2.fit, draws = 1000)

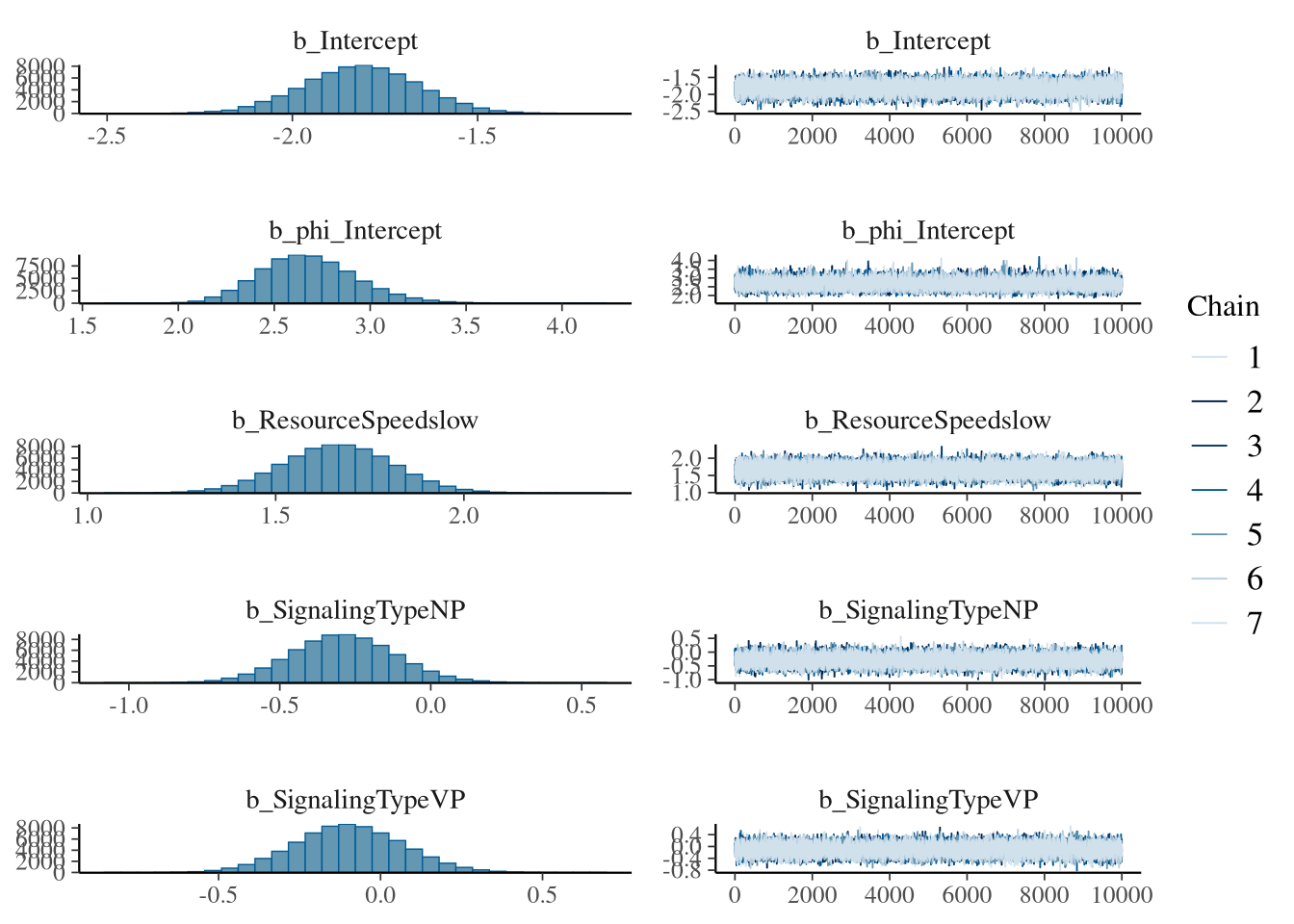

plot(m.CollectedPoints.2.fit, ask = F)

ppc_dens_overlay(m.CollectedPoints.2.y, m.CollectedPoints.2.yrep[1:100, ])

ppc_dens_overlay_grouped(m.CollectedPoints.2.y, m.CollectedPoints.2.yrep[1:100, ],
                         group = m.CollectedPoints.data$ResourceSpeed)

ppc_dens_overlay_grouped(m.CollectedPoints.2.y,m.CollectedPoints.2.yrep[1:100, ],
                         group = m.CollectedPoints.data$SignalingType)

group <- m.CollectedPoints.data$SignalingType
mask <- m.CollectedPoints.data$ResourceSpeed == 'fast'

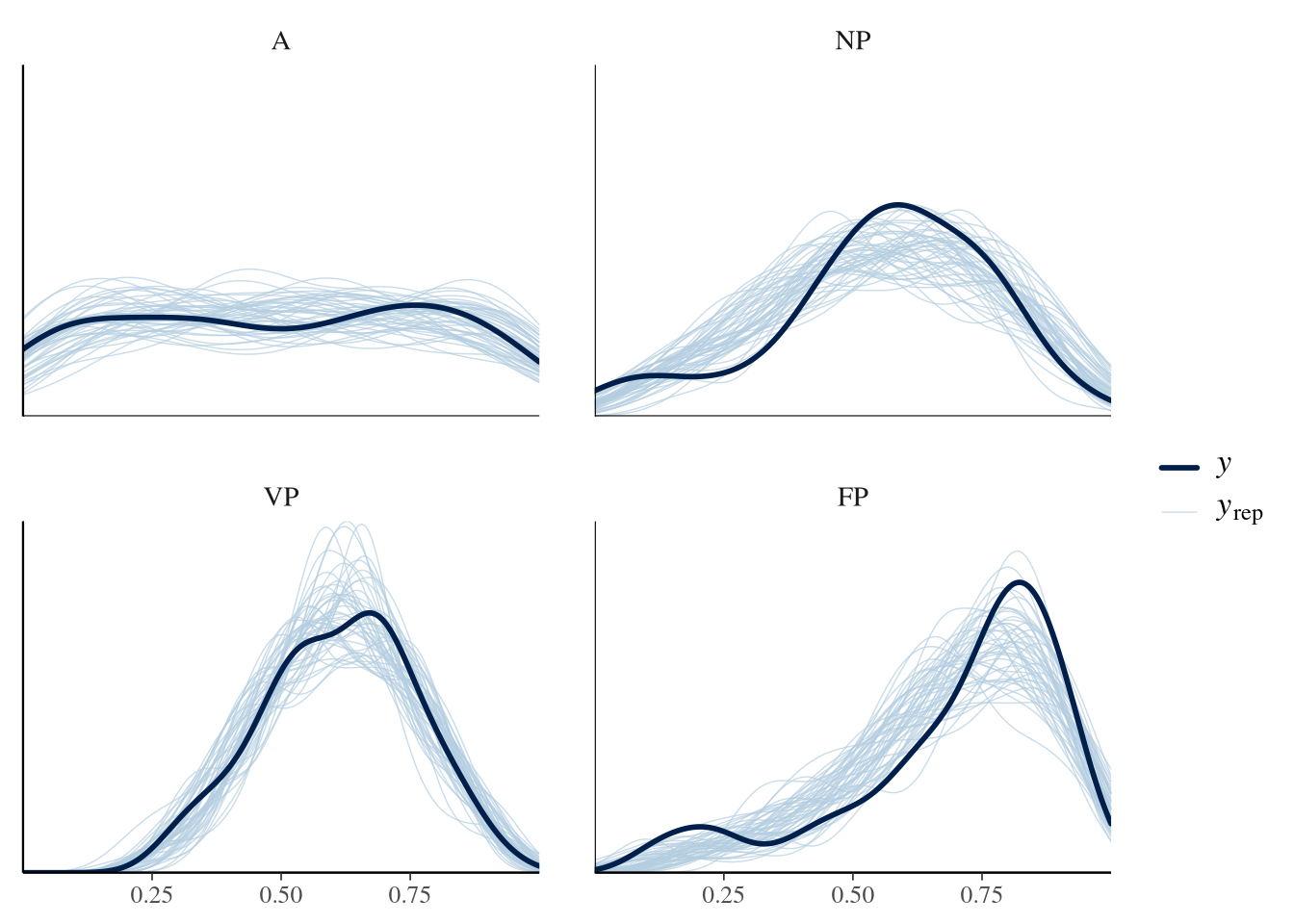

ppc_dens_overlay_grouped(m.CollectedPoints.2.y[mask],
                         m.CollectedPoints.2.yrep[1:50, mask],
                         group = group[mask])

group <- m.CollectedPoints.data$SignalingType
mask <- m.CollectedPoints.data$ResourceSpeed == 'slow'

ppc_dens_overlay_grouped(m.CollectedPoints.2.y[mask],
                         m.CollectedPoints.2.yrep[1:50, mask],
                         group = group[mask])

Model predictions

Condition comparisons

m.CollectedPoints.2.emmeans_contrast_draws.1 <- m.CollectedPoints.2.fit %>%
  emmeans(~ ResourceSpeed,
          epred = TRUE,
          re_formula = m.CollectedPoints.2.formula_comparison,
          type = "response",
          ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws() %>%
  mutate(.value = .value * empirical_max)

m.CollectedPoints.2.comparison.1 <- m.CollectedPoints.2.emmeans_contrast_draws.1 %>%
  ggdist::mean_hdci(.width = 0.9) %>%
  mutate(.value = round(.value, 2), .lower = round(.lower, 2), .upper = round(.upper, 2))

m.CollectedPoints.2.comparison.1 %>%
  knitr::kable("html", digits = 2) %>% kable_classic(full_width = T, position = "center", )

contrast	.value	.lower	.upper	.width	.point	.interval
slow - fast	10720.57	9832.1	11606.53	0.9	mean	hdci

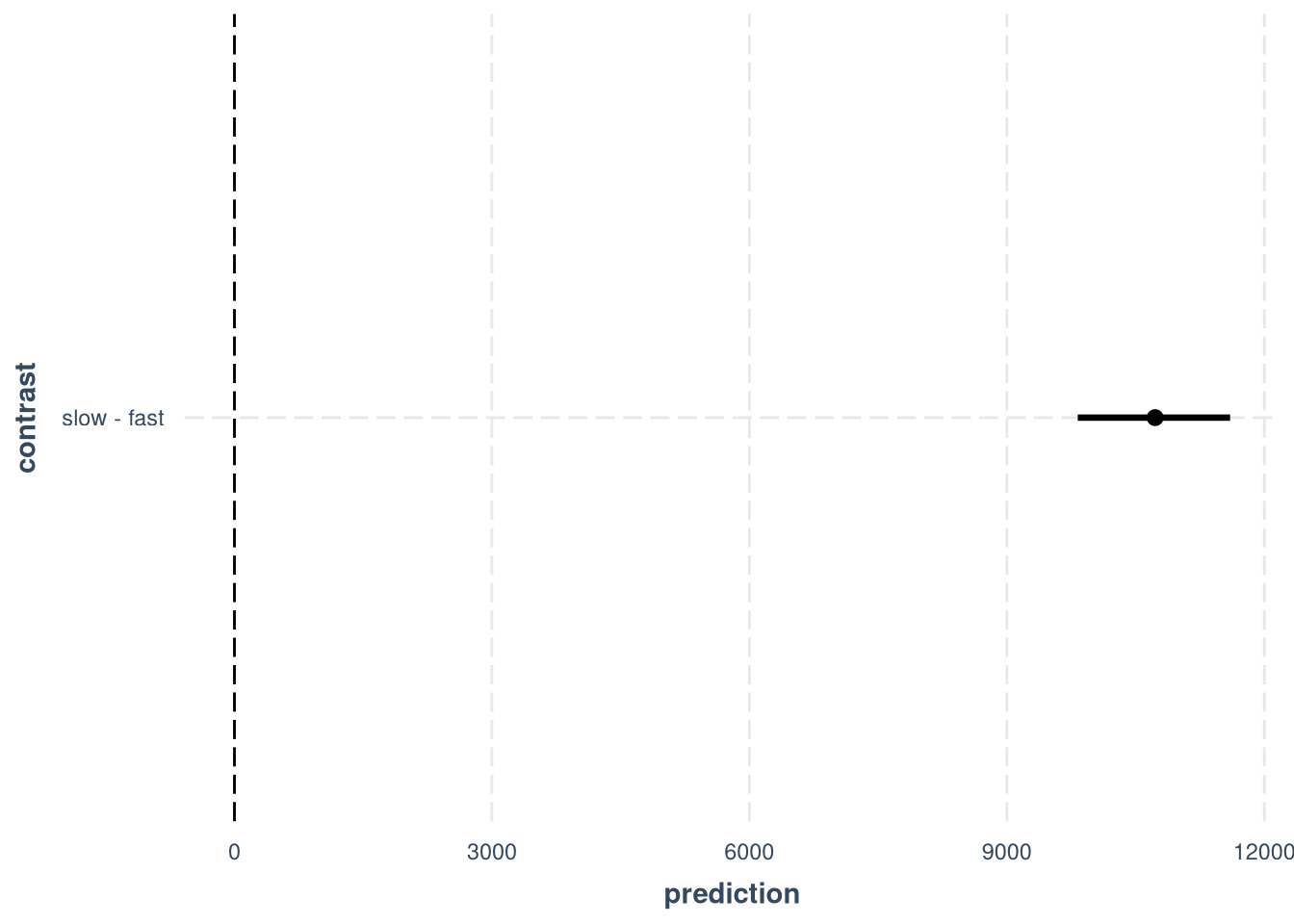

m.CollectedPoints.2.emmeans_contrast_draws.1 %>%
  rename(prediction = .value) %>%
  ggplot(aes(y = contrast, x = prediction)) +
  stat_pointinterval(.width = 0.9) +
  geom_vline(aes(xintercept=0), linetype="longdash") +
  theme_nice()

m.CollectedPoints.2.emmeans_contrast_draws.2 <- m.CollectedPoints.2.fit %>%
  emmeans(~ SignalingType * ResourceSpeed,
          epred = TRUE,
          type = "response",
          re_formula = m.CollectedPoints.2.formula_comparison
         ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws() %>%
  mutate(.value = .value * empirical_max)

ResourceSpeed	SignalingType	contrast	.value	.lower	.upper	.width	.point	.interval
.	A	slow - fast	8449.69	7053.20	9863.92	0.9	mean	hdci
.	FP	slow - fast	11975.64	10337.88	13668.39	0.9	mean	hdci
.	NP	slow - fast	10571.08	8863.52	12276.49	0.9	mean	hdci
.	VP	slow - fast	11885.87	10325.95	13444.91	0.9	mean	hdci
fast	.	FP - A	1710.26	572.81	2803.50	0.9	mean	hdci
fast	.	FP - NP	2544.92	1364.50	3718.67	0.9	mean	hdci
fast	.	FP - VP	2008.92	843.34	3194.27	0.9	mean	hdci
fast	.	NP - A	-834.66	-1654.19	-35.59	0.9	mean	hdci
fast	.	VP - A	-298.66	-1169.61	537.86	0.9	mean	hdci
fast	.	VP - NP	536.00	-385.41	1471.24	0.9	mean	hdci
slow	.	FP - A	5236.22	3373.83	7129.94	0.9	mean	hdci
slow	.	FP - NP	3949.48	1876.26	6081.79	0.9	mean	hdci
slow	.	FP - VP	2098.69	84.14	4069.94	0.9	mean	hdci
slow	.	NP - A	1286.73	-790.97	3366.14	0.9	mean	hdci
slow	.	VP - A	3137.53	1126.32	5079.08	0.9	mean	hdci
slow	.	VP - NP	1850.79	-316.14	4021.80	0.9	mean	hdci

m.CollectedPoints.2.comparison.combined_table <- bind_rows(
  m.CollectedPoints.2.comparison.1,
  m.CollectedPoints.2.comparison.2
) %>%
  select(ResourceSpeed, SignalingType, contrast, .value, .lower, .upper) %>%
  mutate(
    ResourceSpeed = ifelse(is.na(ResourceSpeed), ".", as.character(ResourceSpeed)),
    SignalingType = ifelse(is.na(SignalingType), ".", as.character(SignalingType)),
    sig = (.lower * .upper) > 0,
    Estimate = sprintf("%.2f", .value),
    Estimate = ifelse(sig, paste0("\\textbf{", Estimate, "}"), Estimate),
    hpdi = sprintf("[%.2f, %.2f]", .lower, .upper),
    hpdi = ifelse(sig, paste0("\\textbf{", hpdi, "}"), hpdi)
  ) %>%
  select(ResourceSpeed, SignalingType, contrast, Estimate, hpdi)

colnames(m.CollectedPoints.2.comparison.combined_table) <- c(
  "Resource Speed", "Payoff Condition", "Contrast", "Mean", "90\\% HPDI"
)


kbl <- kable(
  m.CollectedPoints.2.comparison.combined_table,
  format = "latex",
  booktabs = TRUE,
  align = c("l", "l", "l", "r", "r"),
  caption = "Posterior Estimates Collected Points",
  escape = FALSE
  ) %>%
    kable_styling(latex_options = "hold_position") %>%
    row_spec(0, bold = TRUE)

unique_speeds <- unique(m.CollectedPoints.2.comparison.combined_table$`Resource Speed`)
start <- 1
for (speed in unique_speeds) {
  n_rows <- sum(m.CollectedPoints.2.comparison.combined_table$`Resource Speed` == speed)
  if (speed != ".") {
    kbl <- group_rows(kbl, speed, start, start + n_rows - 1)
  }
  start <- start + n_rows
}

writeLines(kbl, paste0(comparisons, "collected_points_2_comparison_combined.tex"))

Variance condition comparisons

.variable	.value	.lower	.upper	.width	.point	.interval
b_phi_Intercept	2.68	2.26	3.09	0.9	mean	hdci
b_phi_ResourceSpeedslow	-1.83	-2.25	-1.39	0.9	mean	hdci
b_phi_ResourceSpeedslow:SignalingTypeFP	0.06	-0.52	0.63	0.9	mean	hdci
b_phi_ResourceSpeedslow:SignalingTypeNP	0.03	-0.54	0.60	0.9	mean	hdci
b_phi_ResourceSpeedslow:SignalingTypeVP	1.35	0.79	1.91	0.9	mean	hdci
b_phi_SignalingTypeFP	1.47	0.99	1.96	0.9	mean	hdci
b_phi_SignalingTypeNP	1.16	0.67	1.65	0.9	mean	hdci
b_phi_SignalingTypeVP	1.16	0.69	1.64	0.9	mean	hdci

m.CollectedPoints.2.emmeans_contrast_draws.phi.1 <- m.CollectedPoints.2.fit %>%
  emmeans(~ SignalingType * ResourceSpeed,
          epred = TRUE,
          re_formula = m.CollectedPoints.2.formula_comparison,
          dpar = "phi",
          type = "response"
          ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws()

m.CollectedPoints.2.comparison.phi.1 <- m.CollectedPoints.2.emmeans_contrast_draws.phi.1 %>%
  ggdist::mean_hdci(.width = 0.9) %>%
  mutate(.value = round(.value, 2), .lower = round(.lower, 2), .upper = round(.upper, 2))

m.CollectedPoints.2.comparison.phi.1 %>%
  knitr::kable("html", digits = 2) %>% kable_classic(full_width = T, position = "center", )

ResourceSpeed	SignalingType	contrast	.value	.lower	.upper	.width	.point	.interval
.	A	slow - fast	0.33	0.28	0.38	0.9	mean	hdci
.	FP	slow - fast	0.47	0.40	0.53	0.9	mean	hdci
.	NP	slow - fast	0.41	0.35	0.48	0.9	mean	hdci
.	VP	slow - fast	0.46	0.40	0.52	0.9	mean	hdci
fast	.	FP - A	0.07	0.02	0.11	0.9	mean	hdci
fast	.	FP - NP	0.10	0.05	0.15	0.9	mean	hdci
fast	.	FP - VP	0.08	0.03	0.12	0.9	mean	hdci
fast	.	NP - A	-0.03	-0.06	0.00	0.9	mean	hdci
fast	.	VP - A	-0.01	-0.05	0.02	0.9	mean	hdci
fast	.	VP - NP	0.02	-0.02	0.06	0.9	mean	hdci
slow	.	FP - A	0.20	0.13	0.28	0.9	mean	hdci
slow	.	FP - NP	0.15	0.07	0.24	0.9	mean	hdci
slow	.	FP - VP	0.08	0.00	0.16	0.9	mean	hdci
slow	.	NP - A	0.05	-0.03	0.13	0.9	mean	hdci
slow	.	VP - A	0.12	0.04	0.20	0.9	mean	hdci
slow	.	VP - NP	0.07	-0.01	0.16	0.9	mean	hdci

m.CollectedPoints.2.emmeans_contrast_draws.phi.2 <- m.CollectedPoints.2.fit %>%
  emmeans(~ ResourceSpeed,
          epred = TRUE,
          re_formula = m.CollectedPoints.2.formula_comparison,
          dpar = "phi",
          type = "response"
          ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws()

m.CollectedPoints.2.comparison.phi.2 <- m.CollectedPoints.2.emmeans_contrast_draws.phi.2 %>%
  ggdist::mean_hdci(.width = 0.9) %>%
  mutate(.value = round(.value, 2), .lower = round(.lower, 2), .upper = round(.upper, 2))

m.CollectedPoints.2.comparison.phi.2 %>%
  knitr::kable("html", digits = 2) %>% kable_classic(full_width = T, position = "center", )

contrast	.value	.lower	.upper	.width	.point	.interval
slow - fast	0.42	0.38	0.45	0.9	mean	hdci

m.CollectedPoints.2.comparison.combined_table.phi <- bind_rows(
  m.CollectedPoints.2.comparison.phi.2,
  m.CollectedPoints.2.comparison.phi.1
) %>%
  select(ResourceSpeed, SignalingType, contrast, .value, .lower, .upper) %>%
  mutate(
    ResourceSpeed = ifelse(is.na(ResourceSpeed), ".", as.character(ResourceSpeed)),
    SignalingType = ifelse(is.na(SignalingType), ".", as.character(SignalingType)),
    sig = (.lower * .upper) > 0,
    Estimate = sprintf("%.2f", .value),
    Estimate = ifelse(sig, paste0("\\textbf{", Estimate, "}"), Estimate),
    hpdi = sprintf("[%.2f, %.2f]", .lower, .upper),
    hpdi = ifelse(sig, paste0("\\textbf{", hpdi, "}"), hpdi)
  ) %>%
  select(ResourceSpeed, SignalingType, contrast, Estimate, hpdi)

colnames(m.CollectedPoints.2.comparison.combined_table.phi) <- c(
  "Resource Speed", "Payoff Condition", "Contrast", "Mean", "90\\% HPDI"
)


kbl <- kable(
  m.CollectedPoints.2.comparison.combined_table.phi,
  format = "latex",
  booktabs = TRUE,
  align = c("l", "l", "l", "r", "r"),
  caption = "Posterior Estimates Collected Points",
  escape = FALSE
  ) %>%
    kable_styling(latex_options = "hold_position") %>%
    row_spec(0, bold = TRUE)

unique_speeds <- unique(m.CollectedPoints.2.comparison.combined_table.phi$`Resource Speed`)
start <- 1
for (speed in unique_speeds) {
  n_rows <- sum(m.CollectedPoints.2.comparison.combined_table.phi$`Resource Speed` == speed)
  if (speed != ".") {
    kbl <- group_rows(kbl, speed, start, start + n_rows - 1)
  }
  start <- start + n_rows
}


writeLines(kbl, paste0(comparisons, "collected_points_2_comparison_combined_phi.tex"))

Figure

Model Comparison

m.CollectedPoints.1.loo_model <- loo(m.CollectedPoints.1.fit, moment_match = F, reloo = F, draws = 1000)
m.CollectedPoints.2.loo_model <- loo(m.CollectedPoints.2.fit, moment_match = F, reloo = F, draws = 1000)

print(m.CollectedPoints.1.loo_model)

##
## Computed from 70000 by 621 log-likelihood matrix.
##
##          Estimate   SE
## elpd_loo    455.4 18.7
## p_loo       147.3 11.7
## looic      -910.7 37.3
## ------
## MCSE of elpd_loo is NA.
## MCSE and ESS estimates assume MCMC draws (r_eff in [0.4, 2.2]).
##
## Pareto k diagnostic values:
##                          Count Pct.    Min. ESS
## (-Inf, 0.7]   (good)     555   89.4%   529
##    (0.7, 1]   (bad)       63   10.1%   <NA>
##    (1, Inf)   (very bad)   3    0.5%   <NA>
## See help('pareto-k-diagnostic') for details.

print(m.CollectedPoints.2.loo_model)

##
## Computed from 70000 by 621 log-likelihood matrix.
##
##          Estimate   SE
## elpd_loo    571.8 24.2
## p_loo       142.3  9.6
## looic     -1143.7 48.3
## ------
## MCSE of elpd_loo is NA.
## MCSE and ESS estimates assume MCMC draws (r_eff in [0.3, 1.8]).
##
## Pareto k diagnostic values:
##                          Count Pct.    Min. ESS
## (-Inf, 0.7]   (good)     607   97.7%   437
##    (0.7, 1]   (bad)       13    2.1%   <NA>
##    (1, Inf)   (very bad)   1    0.2%   <NA>
## See help('pareto-k-diagnostic') for details.

print(m.CollectedPoints.loo_comparison, simplify = FALSE, digits = 3)

##                         elpd_diff se_diff   elpd_loo  se_elpd_loo p_loo     se_p_loo  looic     se_looic
## m.CollectedPoints.2.fit     0.000     0.000   571.845    24.156     142.342     9.587 -1143.690    48.312
## m.CollectedPoints.1.fit  -116.474    13.420   455.371    18.675     147.336    11.669  -910.742    37.349

Model 3

m.CollectedPoints.3.formula <- brmsformula(
  Score_corrected_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup + (1 | Group),
  phi ~ ResourceSpeed * SignalingType,
  family = Beta(link = "logit", link_phi = "log")
  )

m.CollectedPoints.3.formula_comparison <- brmsformula(
  Score_corrected_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup,
  phi ~ ResourceSpeed * SignalingType
  )

m.CollectedPoints.3.priors <-
    prior(normal(0, 0.5), class = b) +
    prior(normal(0, 1), class = Intercept) +
    prior(gamma(4, 0.1), class = Intercept, dpar = phi, lb = 0) +
    prior(normal(0, 1), class = b, dpar = phi) +
    prior(normal(0, 1), class = sd, lb = 0)

Model fitting

m.CollectedPoints.3.fit <- brm(
  formula = m.CollectedPoints.3.formula,
  data    = m.CollectedPoints.data,
  prior   = m.CollectedPoints.3.priors,
  chains  = 7,
  cores   = 7,
  seed    = 42,
  iter    = 20000,
  file = paste0(fits_path, 'collected_points_3.rds'),
  backend = "cmdstanr",
  threads = threading(100),
  control = list(adapt_delta = 0.95),
  save_pars = save_pars(all = TRUE)
  )

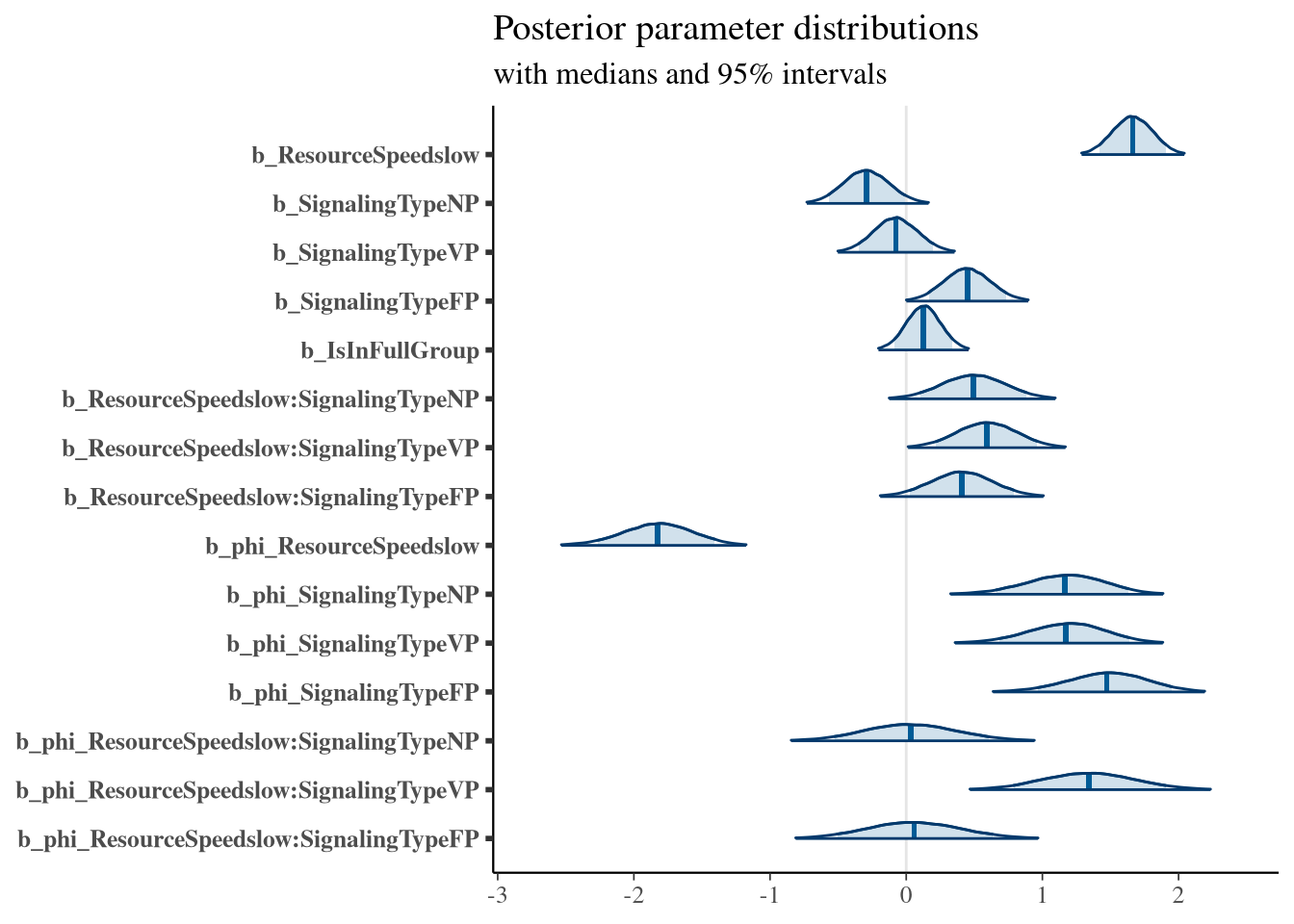

##  Family: beta
##   Links: mu = logit; phi = log
## Formula: Score_corrected_0_1 ~ 1 + ResourceSpeed * SignalingType + IsInFullGroup + (1 | Group)
##          phi ~ ResourceSpeed * SignalingType
##    Data: m.CollectedPoints.data (Number of observations: 621)
##   Draws: 7 chains, each with iter = 20000; warmup = 10000; thin = 1;
##          total post-warmup draws = 70000
##
## Multilevel Hyperparameters:
## ~Group (Number of levels: 247)
##               Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## sd(Intercept)     0.58      0.05     0.48     0.70 1.00    10371    17642
##
## Regression Coefficients:
##                                       Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## Intercept                                -1.81      0.16    -2.12    -1.51 1.00    17270    28423
## phi_Intercept                             2.68      0.25     2.22     3.21 1.00    10036    12486
## ResourceSpeedslow                         1.66      0.15     1.38     1.95 1.00    32473    40490
## SignalingTypeNP                          -0.29      0.17    -0.62     0.05 1.00    16296    26204
## SignalingTypeVP                          -0.08      0.17    -0.40     0.25 1.00    15542    27232
## SignalingTypeFP                           0.45      0.17     0.11     0.79 1.00    13641    24092
## IsInFullGroup                             0.13      0.13    -0.13     0.38 1.00    14065    24308
## ResourceSpeedslow:SignalingTypeNP         0.49      0.24     0.03     0.96 1.00    20846    32182
## ResourceSpeedslow:SignalingTypeVP         0.59      0.22     0.15     1.03 1.00    17136    29301
## ResourceSpeedslow:SignalingTypeFP         0.41      0.23    -0.05     0.86 1.00    18083    32649
## phi_ResourceSpeedslow                    -1.83      0.26    -2.36    -1.33 1.00    14080    18894
## phi_SignalingTypeNP                       1.16      0.30     0.55     1.72 1.00    13325    17853
## phi_SignalingTypeVP                       1.17      0.29     0.58     1.72 1.00    12719    16372
## phi_SignalingTypeFP                       1.47      0.30     0.86     2.03 1.00    13362    18068
## phi_ResourceSpeedslow:SignalingTypeNP     0.03      0.34    -0.63     0.72 1.00    18768    27802
## phi_ResourceSpeedslow:SignalingTypeVP     1.34      0.34     0.68     2.01 1.00    18808    27879
## phi_ResourceSpeedslow:SignalingTypeFP     0.06      0.35    -0.61     0.74 1.00    18377    27402
##
## Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
## and Tail_ESS are effective sample size measures, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).

Model predictions

Condition comparisons

m.CollectedPoints.3.emmeans_contrast_draws.1 <- m.CollectedPoints.3.fit %>%
  emmeans(~ ResourceSpeed,
          epred = TRUE,
          re_formula = m.CollectedPoints.3.formula_comparison,
          type = "response",
          ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws() %>%
  mutate(.value = .value * empirical_max_corrected)

m.CollectedPoints.3.comparison.1 <- m.CollectedPoints.3.emmeans_contrast_draws.1 %>%
  ggdist::mean_hdci(.width = 0.9) %>%
  mutate(.value = round(.value, 2), .lower = round(.lower, 2), .upper = round(.upper, 2))

m.CollectedPoints.3.comparison.1 %>%
  knitr::kable("html", digits = 2) %>% kable_classic(full_width = T, position = "center", )

contrast	.value	.lower	.upper	.width	.point	.interval
slow - fast	10729.14	9853.33	11616.74	0.9	mean	hdci

m.CollectedPoints.3.emmeans_contrast_draws.1 %>%
  rename(prediction = .value) %>%
  ggplot(aes(y = contrast, x = prediction)) +
  stat_pointinterval(.width = 0.9) +
  geom_vline(aes(xintercept=0), linetype="longdash") +
  theme_nice()

m.CollectedPoints.3.emmeans_contrast_draws.2 <- m.CollectedPoints.3.fit %>%
  emmeans(~ SignalingType * ResourceSpeed,
          epred = TRUE,
          type = "response",
          re_formula = m.CollectedPoints.3.formula_comparison
         ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws() %>%
  mutate(.value = .value * empirical_max_corrected)

ResourceSpeed	SignalingType	contrast	.value	.lower	.upper	.width	.point	.interval
.	A	slow - fast	8447.48	7061.82	9863.63	0.9	mean	hdci
.	FP	slow - fast	11973.37	10314.00	13620.26	0.9	mean	hdci
.	NP	slow - fast	10572.07	8906.07	12281.47	0.9	mean	hdci
.	VP	slow - fast	11923.66	10380.76	13467.63	0.9	mean	hdci
fast	.	FP - A	1696.47	599.48	2832.15	0.9	mean	hdci
fast	.	FP - NP	2540.12	1355.01	3709.39	0.9	mean	hdci
fast	.	FP - VP	1930.74	750.34	3114.67	0.9	mean	hdci
fast	.	NP - A	-843.64	-1648.41	-49.21	0.9	mean	hdci
fast	.	VP - A	-234.27	-1086.06	626.63	0.9	mean	hdci
fast	.	VP - NP	609.38	-304.97	1541.83	0.9	mean	hdci
slow	.	FP - A	5222.36	3394.47	7141.53	0.9	mean	hdci
slow	.	FP - NP	3941.42	1798.91	5996.15	0.9	mean	hdci
slow	.	FP - VP	1980.45	-32.45	3895.83	0.9	mean	hdci
slow	.	NP - A	1280.94	-816.30	3308.85	0.9	mean	hdci
slow	.	VP - A	3241.91	1292.60	5185.01	0.9	mean	hdci
slow	.	VP - NP	1960.97	-178.00	4105.57	0.9	mean	hdci

m.CollectedPoints.3.comparison.combined_table <- bind_rows(
  m.CollectedPoints.3.comparison.1,
  m.CollectedPoints.3.comparison.2
) %>%
  select(ResourceSpeed, SignalingType, contrast, .value, .lower, .upper) %>%
  mutate(
    ResourceSpeed = ifelse(is.na(ResourceSpeed), ".", as.character(ResourceSpeed)),
    SignalingType = ifelse(is.na(SignalingType), ".", as.character(SignalingType)),
    sig = (.lower * .upper) > 0,
    Estimate = sprintf("%.2f", .value),
    Estimate = ifelse(sig, paste0("\\textbf{", Estimate, "}"), Estimate),
    hpdi = sprintf("[%.2f, %.2f]", .lower, .upper),
    hpdi = ifelse(sig, paste0("\\textbf{", hpdi, "}"), hpdi)
  ) %>%
  select(ResourceSpeed, SignalingType, contrast, Estimate, hpdi)

colnames(m.CollectedPoints.3.comparison.combined_table) <- c(
  "Resource Speed", "Payoff Condition", "Contrast", "Mean", "90\\% HPDI"
)


kbl <- kable(
  m.CollectedPoints.3.comparison.combined_table,
  format = "latex",
  booktabs = TRUE,
  align = c("l", "l", "l", "r", "r"),
  caption = "Posterior Estimates Collected Points",
  escape = FALSE
  ) %>%
    kable_styling(latex_options = "hold_position") %>%
    row_spec(0, bold = TRUE)

unique_speeds <- unique(m.CollectedPoints.3.comparison.combined_table$`Resource Speed`)
start <- 1
for (speed in unique_speeds) {
  n_rows <- sum(m.CollectedPoints.3.comparison.combined_table$`Resource Speed` == speed)
  if (speed != ".") {
    kbl <- group_rows(kbl, speed, start, start + n_rows - 1)
  }
  start <- start + n_rows
}

writeLines(kbl, paste0(comparisons, "collected_points_3_comparison_combined.tex"))

Variance condition comparisons

.variable	.value	.lower	.upper	.width	.point	.interval
b_phi_Intercept	2.68	2.28	3.10	0.9	mean	hdci
b_phi_ResourceSpeedslow	-1.83	-2.25	-1.39	0.9	mean	hdci
b_phi_ResourceSpeedslow:SignalingTypeFP	0.06	-0.50	0.64	0.9	mean	hdci
b_phi_ResourceSpeedslow:SignalingTypeNP	0.03	-0.53	0.60	0.9	mean	hdci
b_phi_ResourceSpeedslow:SignalingTypeVP	1.34	0.78	1.89	0.9	mean	hdci
b_phi_SignalingTypeFP	1.47	0.98	1.95	0.9	mean	hdci
b_phi_SignalingTypeNP	1.16	0.68	1.65	0.9	mean	hdci
b_phi_SignalingTypeVP	1.17	0.70	1.65	0.9	mean	hdci

m.CollectedPoints.3.emmeans_contrast_draws.phi.1 <- m.CollectedPoints.3.fit %>%
  emmeans(~ SignalingType * ResourceSpeed,
          epred = TRUE,
          re_formula = m.CollectedPoints.3.formula_comparison,
          dpar = "phi",
          type = "response"
          ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws()

m.CollectedPoints.3.comparison.phi.1 <- m.CollectedPoints.3.emmeans_contrast_draws.phi.1 %>%
  ggdist::mean_hdci(.width = 0.9) %>%
  mutate(.value = round(.value, 2), .lower = round(.lower, 2), .upper = round(.upper, 2))

m.CollectedPoints.3.comparison.phi.1 %>%
  knitr::kable("html", digits = 2) %>% kable_classic(full_width = T, position = "center", )

ResourceSpeed	SignalingType	contrast	.value	.lower	.upper	.width	.point	.interval
.	A	slow - fast	0.33	0.28	0.38	0.9	mean	hdci
.	FP	slow - fast	0.47	0.40	0.53	0.9	mean	hdci
.	NP	slow - fast	0.41	0.35	0.48	0.9	mean	hdci
.	VP	slow - fast	0.47	0.41	0.53	0.9	mean	hdci
fast	.	FP - A	0.07	0.02	0.11	0.9	mean	hdci
fast	.	FP - NP	0.10	0.05	0.14	0.9	mean	hdci
fast	.	FP - VP	0.08	0.03	0.12	0.9	mean	hdci
fast	.	NP - A	-0.03	-0.06	0.00	0.9	mean	hdci
fast	.	VP - A	-0.01	-0.04	0.02	0.9	mean	hdci
fast	.	VP - NP	0.02	-0.01	0.06	0.9	mean	hdci
slow	.	FP - A	0.20	0.13	0.28	0.9	mean	hdci
slow	.	FP - NP	0.15	0.07	0.23	0.9	mean	hdci
slow	.	FP - VP	0.08	0.00	0.15	0.9	mean	hdci
slow	.	NP - A	0.05	-0.03	0.13	0.9	mean	hdci
slow	.	VP - A	0.13	0.05	0.20	0.9	mean	hdci
slow	.	VP - NP	0.08	-0.01	0.16	0.9	mean	hdci

m.CollectedPoints.3.emmeans_contrast_draws.phi.2 <- m.CollectedPoints.3.fit %>%
  emmeans(~ ResourceSpeed,
          epred = TRUE,
          re_formula = m.CollectedPoints.3.formula_comparison,
          dpar = "phi",
          type = "response"
          ) %>%
  contrast(method = "revpairwise", simple = "each", combine = TRUE) %>%
  gather_emmeans_draws()

m.CollectedPoints.3.comparison.phi.2 <- m.CollectedPoints.3.emmeans_contrast_draws.phi.2 %>%
  ggdist::mean_hdci(.width = 0.9) %>%
  mutate(.value = round(.value, 2), .lower = round(.lower, 2), .upper = round(.upper, 2))

m.CollectedPoints.3.comparison.phi.2 %>%
  knitr::kable("html", digits = 2) %>% kable_classic(full_width = T, position = "center", )

contrast	.value	.lower	.upper	.width	.point	.interval
slow - fast	0.42	0.38	0.45	0.9	mean	hdci

m.CollectedPoints.3.comparison.combined_table.phi <- bind_rows(
  m.CollectedPoints.3.comparison.phi.2,
  m.CollectedPoints.3.comparison.phi.1
) %>%
  select(ResourceSpeed, SignalingType, contrast, .value, .lower, .upper) %>%
  mutate(
    ResourceSpeed = ifelse(is.na(ResourceSpeed), ".", as.character(ResourceSpeed)),
    SignalingType = ifelse(is.na(SignalingType), ".", as.character(SignalingType)),
    sig = (.lower * .upper) > 0,
    Estimate = sprintf("%.2f", .value),
    Estimate = ifelse(sig, paste0("\\textbf{", Estimate, "}"), Estimate),
    hpdi = sprintf("[%.2f, %.2f]", .lower, .upper),
    hpdi = ifelse(sig, paste0("\\textbf{", hpdi, "}"), hpdi)
  ) %>%
  select(ResourceSpeed, SignalingType, contrast, Estimate, hpdi)

colnames(m.CollectedPoints.3.comparison.combined_table.phi) <- c(
  "Resource Speed", "Payoff Condition", "Contrast", "Mean", "90\\% HPDI"
)


kbl <- kable(
  m.CollectedPoints.3.comparison.combined_table.phi,
  format = "latex",
  booktabs = TRUE,
  align = c("l", "l", "l", "r", "r"),
  caption = "Posterior Estimates Collected Points",
  escape = FALSE
  ) %>%
    kable_styling(latex_options = "hold_position") %>%
    row_spec(0, bold = TRUE)

unique_speeds <- unique(m.CollectedPoints.3.comparison.combined_table.phi$`Resource Speed`)
start <- 1
for (speed in unique_speeds) {
  n_rows <- sum(m.CollectedPoints.3.comparison.combined_table.phi$`Resource Speed` == speed)
  if (speed != ".") {
    kbl <- group_rows(kbl, speed, start, start + n_rows - 1)
  }
  start <- start + n_rows
}


writeLines(kbl, paste0(comparisons, "collected_points_3_comparison_combined_phi.tex"))

Figure

Model 4: Collected Points by Epoch

We utilize ScoreFirstHalf and ScoreSecondHalf per participant to construct a between-epoch split (First Half vs. Second Half).

Empirical maximum per epoch: [1] 13236

Model specification

m.CollectedPoints.4.formula <- brmsformula(
  Score_epoch_0_1 ~ 1 + ResourceSpeed * SignalingType * Epoch + IsInFullGroup,
  phi ~ ResourceSpeed * SignalingType,
  family = Beta(link = "logit", link_phi = "log")
)

m.CollectedPoints.4.formula_comparison <- brmsformula(
  Score_epoch_0_1 ~ 1 + ResourceSpeed * SignalingType * Epoch + IsInFullGroup,
  phi ~ ResourceSpeed * SignalingType
)

m.CollectedPoints.4.priors <-
  prior(normal(0, 0.5), class = b) +
  prior(normal(0, 1), class = Intercept) +
  prior(gamma(4, 0.1), class = Intercept, dpar = phi, lb = 0) +
  prior(normal(0, 1), class = b, dpar = phi)

Model fitting

m.CollectedPoints.4.fit <- brm(
  formula = m.CollectedPoints.4.formula,
  data    = m.CollectedPoints.epoch.data,
  prior   = m.CollectedPoints.4.priors,
  chains  = 7,
  cores   = 7,
  seed    = 42,
  iter    = 10000,
  file    = paste0(fits_path, 'collected_points_4_epoch.rds'),
  backend = "cmdstanr",
  threads = threading(100),
  control = list(adapt_delta = 0.95),
  save_pars = save_pars(all = TRUE)
)

##  Family: beta
##   Links: mu = logit; phi = log
## Formula: Score_epoch_0_1 ~ 1 + ResourceSpeed * SignalingType * Epoch + IsInFullGroup
##          phi ~ ResourceSpeed * SignalingType
##    Data: m.CollectedPoints.epoch.data (Number of observations: 1242)
##   Draws: 7 chains, each with iter = 10000; warmup = 5000; thin = 1;
##          total post-warmup draws = 35000
##
## Regression Coefficients:
##                                                   Estimate Est.Error l-95% CI u-95% CI Rhat Bulk_ESS Tail_ESS
## Intercept                                            -1.63      0.10    -1.84    -1.43 1.00    17623    23367
## phi_Intercept                                         1.79      0.11     1.57     2.00 1.00    17297    23945
## ResourceSpeedslow                                     1.50      0.13     1.24     1.76 1.00    15873    22174
## SignalingTypeNP                                      -0.47      0.12    -0.71    -0.23 1.00    18779    23510
## SignalingTypeVP                                      -0.24      0.11    -0.46    -0.02 1.00    18018    23831
## SignalingTypeFP                                       0.30      0.11     0.08     0.53 1.00    18115    23572
## EpochSecondHalf                                      -0.14      0.12    -0.37     0.09 1.00    16381    22782
## IsInFullGroup                                         0.07      0.05    -0.03     0.17 1.00    48755    26285
## ResourceSpeedslow:SignalingTypeNP                     0.59      0.18     0.25     0.93 1.00    18878    24330
## ResourceSpeedslow:SignalingTypeVP                     0.64      0.16     0.33     0.95 1.00    17849    23636
## ResourceSpeedslow:SignalingTypeFP                     0.36      0.17     0.02     0.69 1.00    19416    24609
## ResourceSpeedslow:EpochSecondHalf                    -0.07      0.17    -0.40     0.26 1.00    16435    22875
## SignalingTypeNP:EpochSecondHalf                       0.17      0.16    -0.13     0.48 1.00    19762    24301
## SignalingTypeVP:EpochSecondHalf                      -0.00      0.15    -0.29     0.28 1.00    18499    23769
## SignalingTypeFP:EpochSecondHalf                       0.17      0.14    -0.11     0.45 1.00    19355    24882
## ResourceSpeedslow:SignalingTypeNP:EpochSecondHalf     0.05      0.23    -0.40     0.49 1.00    21158    24250
## ResourceSpeedslow:SignalingTypeVP:EpochSecondHalf     0.28      0.21    -0.12     0.69 1.00    19252    23964
## ResourceSpeedslow:SignalingTypeFP:EpochSecondHalf    -0.15      0.22    -0.59     0.28 1.00    21381    25187
## phi_ResourceSpeedslow                                -1.35      0.14    -1.63    -1.07 1.00    16084    22414
## phi_SignalingTypeNP                                   0.83      0.16     0.51     1.14 1.00    20634    24454
## phi_SignalingTypeVP                                   1.06      0.15     0.76     1.36 1.00    21154    24546
## phi_SignalingTypeFP                                   0.91      0.16     0.60     1.22 1.00    20931    24529
## phi_ResourceSpeedslow:SignalingTypeNP                -0.07      0.21    -0.47     0.34 1.00    19401    22745
## phi_ResourceSpeedslow:SignalingTypeVP                 0.60      0.20     0.19     1.00 1.00    20269    24837
## phi_ResourceSpeedslow:SignalingTypeFP                -0.28      0.20    -0.68     0.12 1.00    19821    25351
##
## Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
## and Tail_ESS are effective sample size measures, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).

Condition comparisons

m.CollectedPoints.4.emmeans_contrast_draws.1 <- m.CollectedPoints.4.fit %>%
  emmeans(~ SignalingType * ResourceSpeed * Epoch,
          epred = TRUE,
          type = "response",
          re_formula = m.CollectedPoints.4.formula_comparison
  ) %>%
  contrast(method = "revpairwise", by = c("SignalingType", "ResourceSpeed"), combine = TRUE) %>%
  gather_emmeans_draws() %>%
  mutate(.value = .value * empirical_max_epoch)

m.CollectedPoints.4.comparison.table <- m.CollectedPoints.4.emmeans_contrast_draws.1 %>%
  ggdist::mean_hdci(.width = 0.9) %>%
  mutate(.value = round(.value, 2), .lower = round(.lower, 2), .upper = round(.upper, 2)) %>%
  filter(!is.na(contrast)) %>%
  select(ResourceSpeed, SignalingType, contrast, .value, .lower, .upper) %>%
  mutate(
    ResourceSpeed = ifelse(is.na(ResourceSpeed), ".", as.character(ResourceSpeed)),
    SignalingType = ifelse(is.na(SignalingType), ".", as.character(SignalingType)),
    sig = (.lower * .upper) > 0,
    Estimate = sprintf("%.2f", .value),
    Estimate = ifelse(sig, paste0("\\textbf{", Estimate, "}"), Estimate),
    hpdi = sprintf("[%.2f, %.2f]", .lower, .upper),
    hpdi = ifelse(sig, paste0("\\textbf{", hpdi, "}"), hpdi),
    contrast = "Second - First Half"
  ) %>%
  select(ResourceSpeed, SignalingType, contrast, Estimate, hpdi)

colnames(m.CollectedPoints.4.comparison.table) <- c(
  "Resource Speed", "Payoff Condition", "Contrast", "Mean", "90\\% HPDI"
)

kbl_epoch <- kable(
  m.CollectedPoints.4.comparison.table,
  format = "latex",
  booktabs = TRUE,
  align = c("l", "l", "l", "r", "r"),
  caption = "Posterior Estimates Collected Points by Epoch",
  escape = FALSE
) %>%
  kable_styling(latex_options = "hold_position") %>%
  row_spec(0, bold = TRUE)

unique_speeds_epoch <- unique(m.CollectedPoints.4.comparison.table$`Resource Speed`)
start <- 1
for (speed in unique_speeds_epoch) {
  n_rows <- sum(m.CollectedPoints.4.comparison.table$`Resource Speed` == speed)
  if (speed != ".") {
    kbl_epoch <- group_rows(kbl_epoch, speed, start, start + n_rows - 1)
  }
  start <- start + n_rows
}

writeLines(kbl_epoch, paste0(comparisons, "collected_points_4_comparison.tex"))

Collective Resource Tracking Statistical Analysis

Collected Points

Model 1

Prior predictive checks

Model fitting

Model diagnostics

Model predictions

Condition comparisons

Figure

Model 2

Prior predictive checks

Model fitting

Model diagnostics

Model predictions

Condition comparisons

Variance condition comparisons

Figure

Model Comparison

Model 3

Model fitting

Model predictions

Condition comparisons

Variance condition comparisons

Figure

Model 4: Collected Points by Epoch

Model specification

Model fitting

Condition comparisons

Model figure
